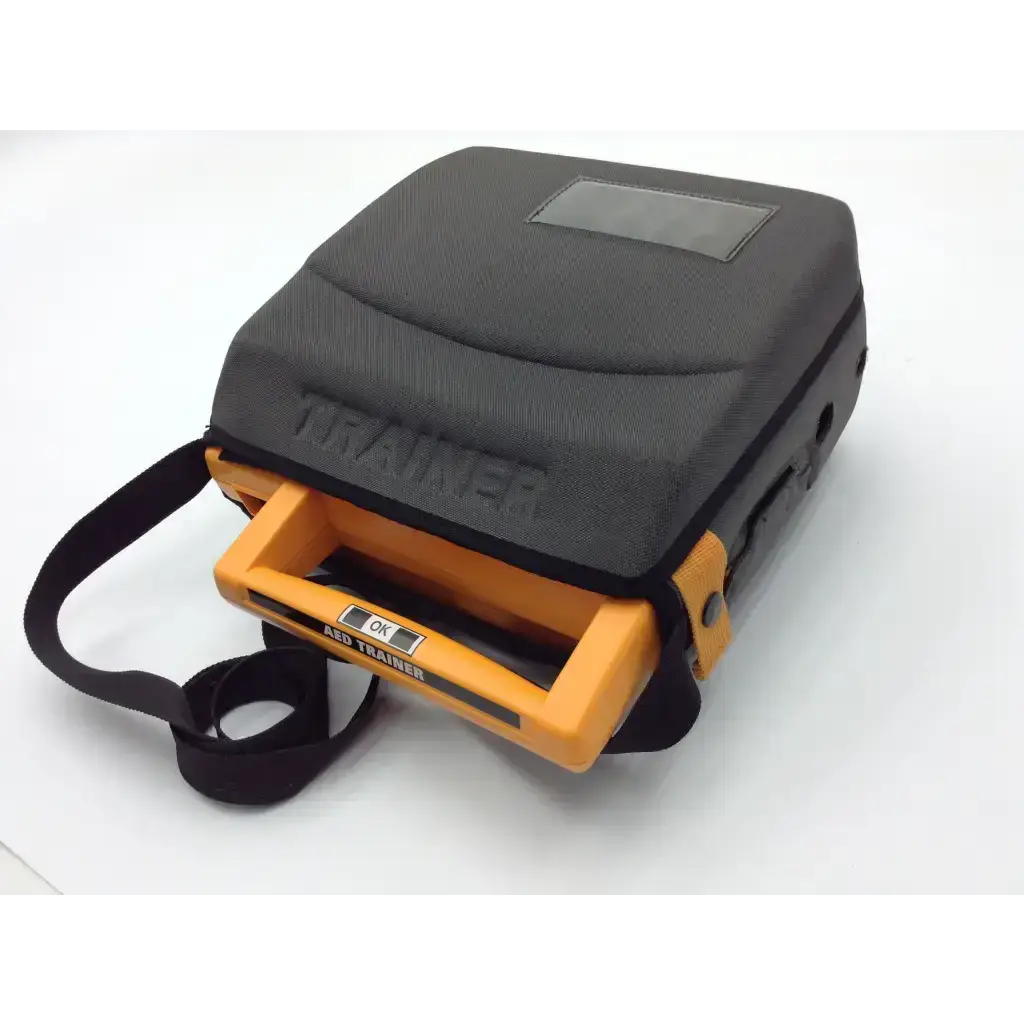

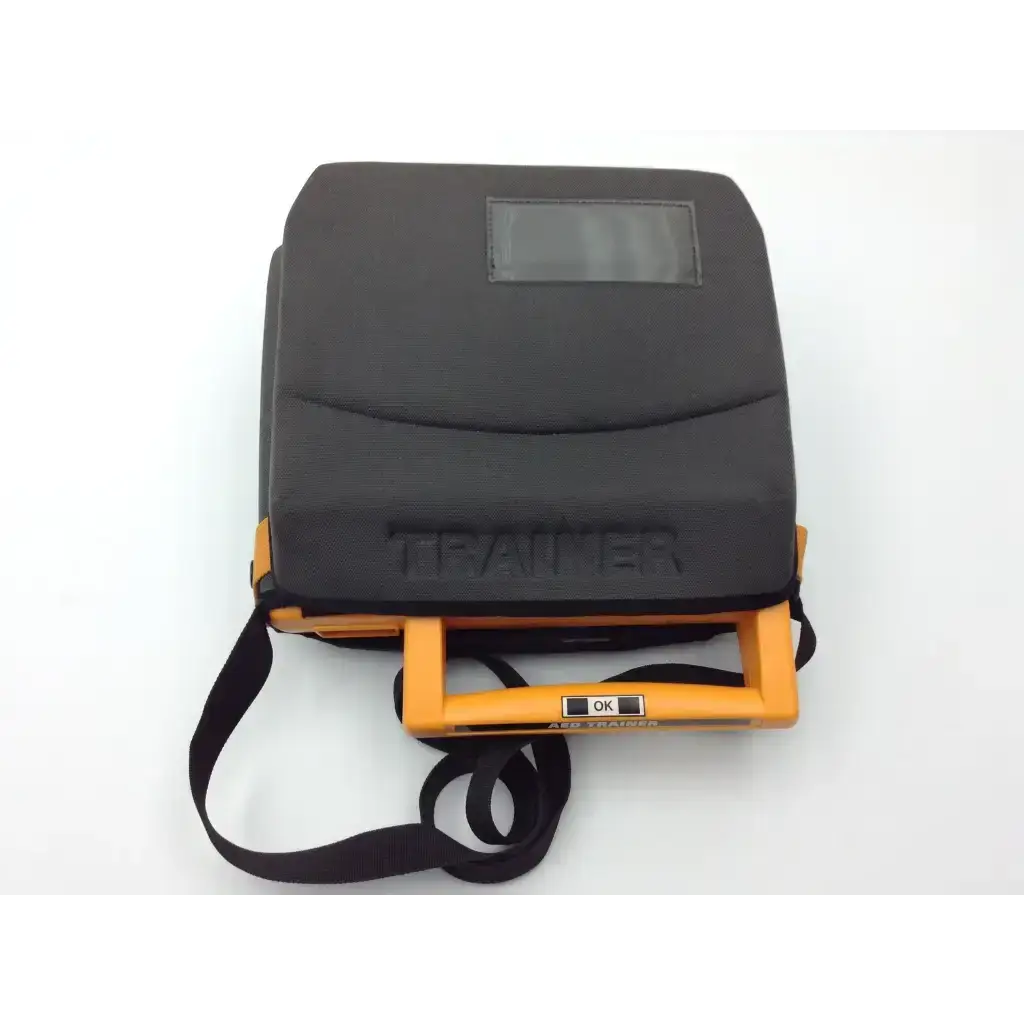

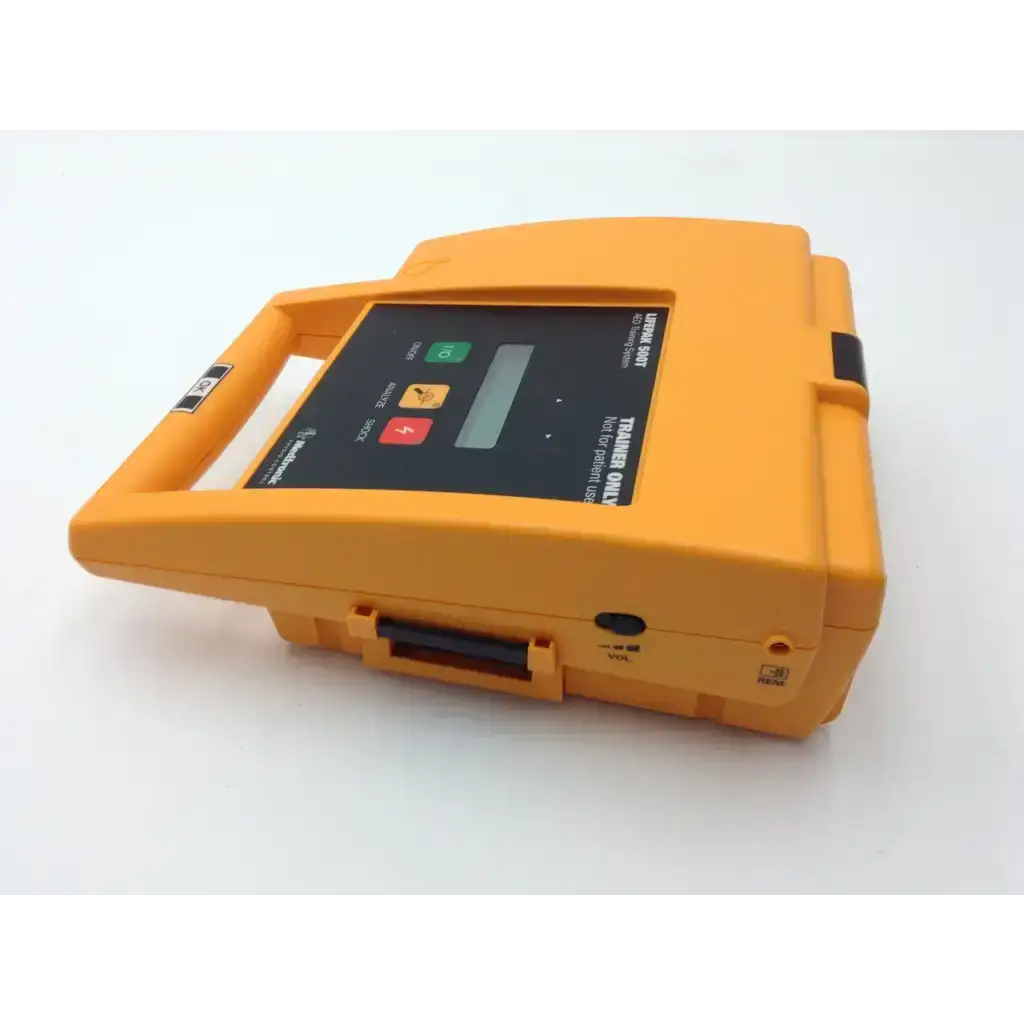

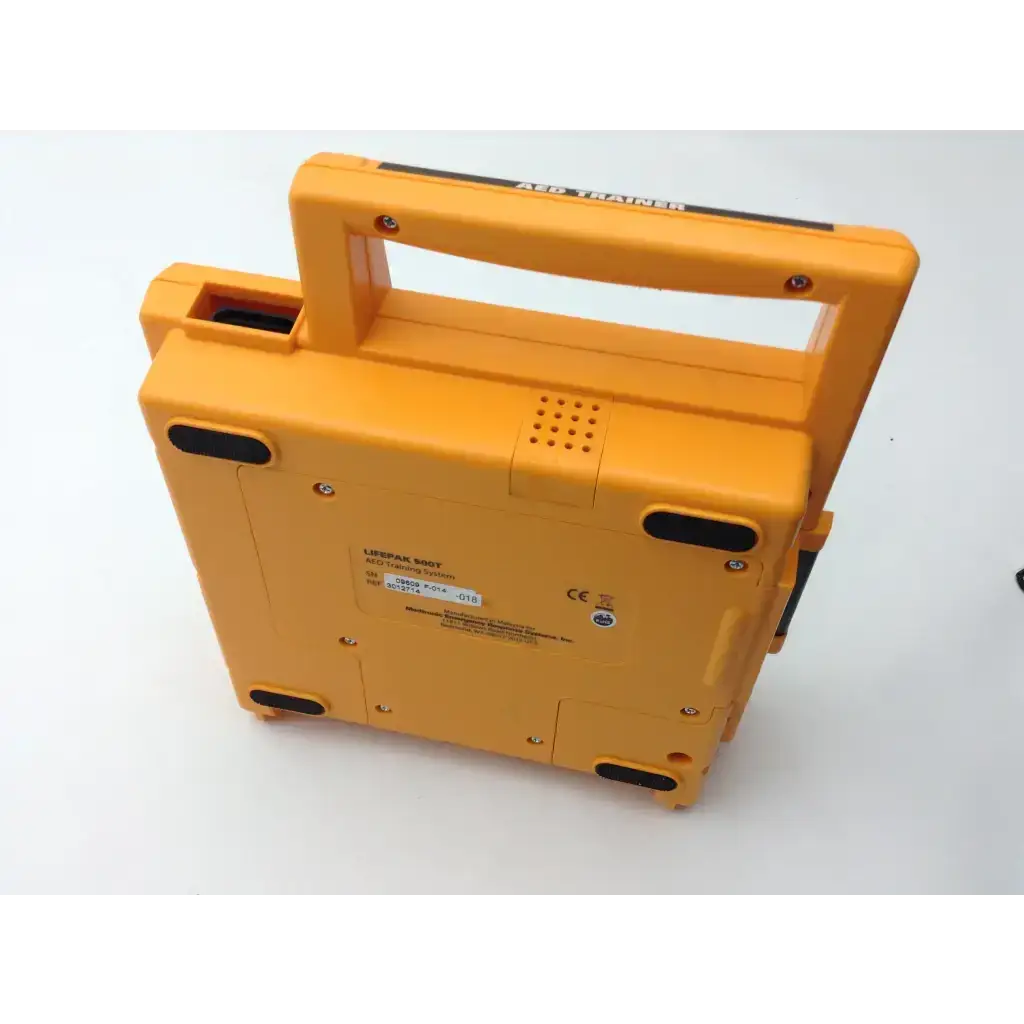

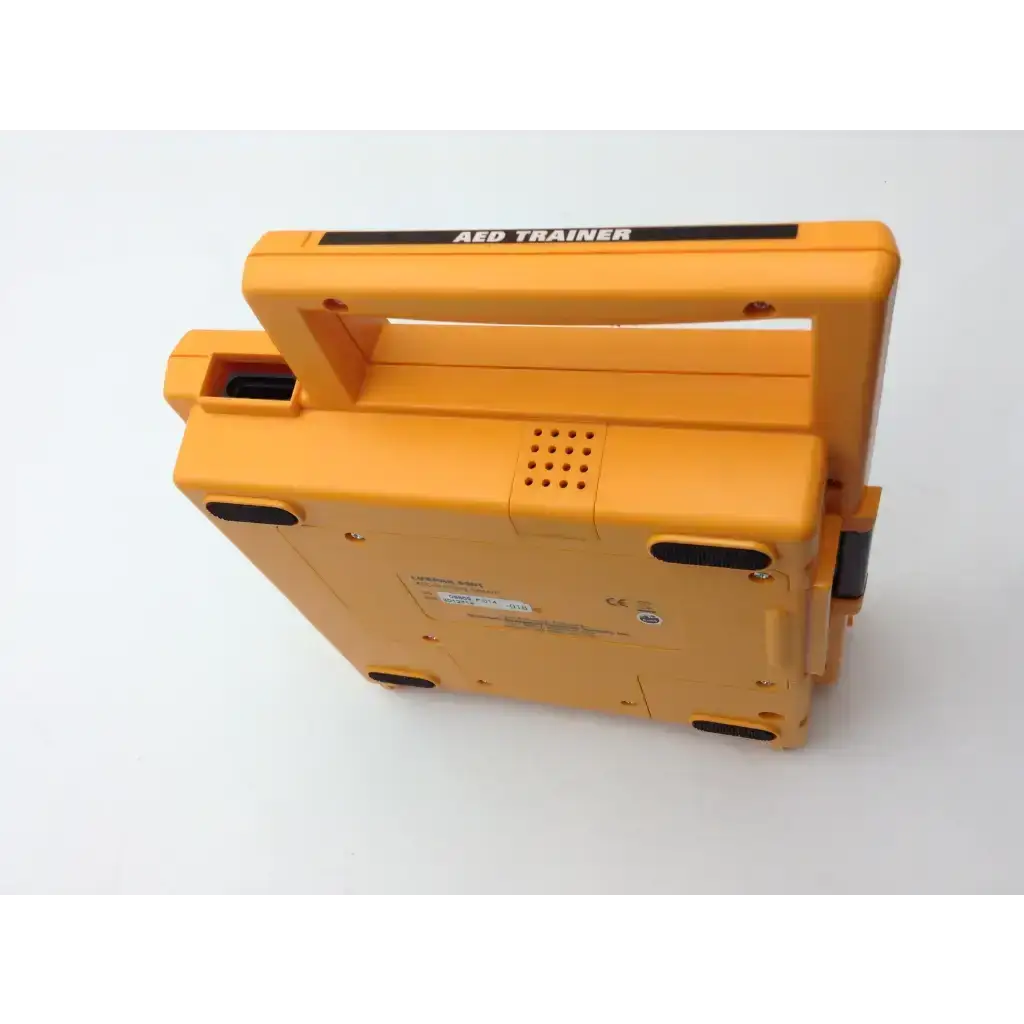

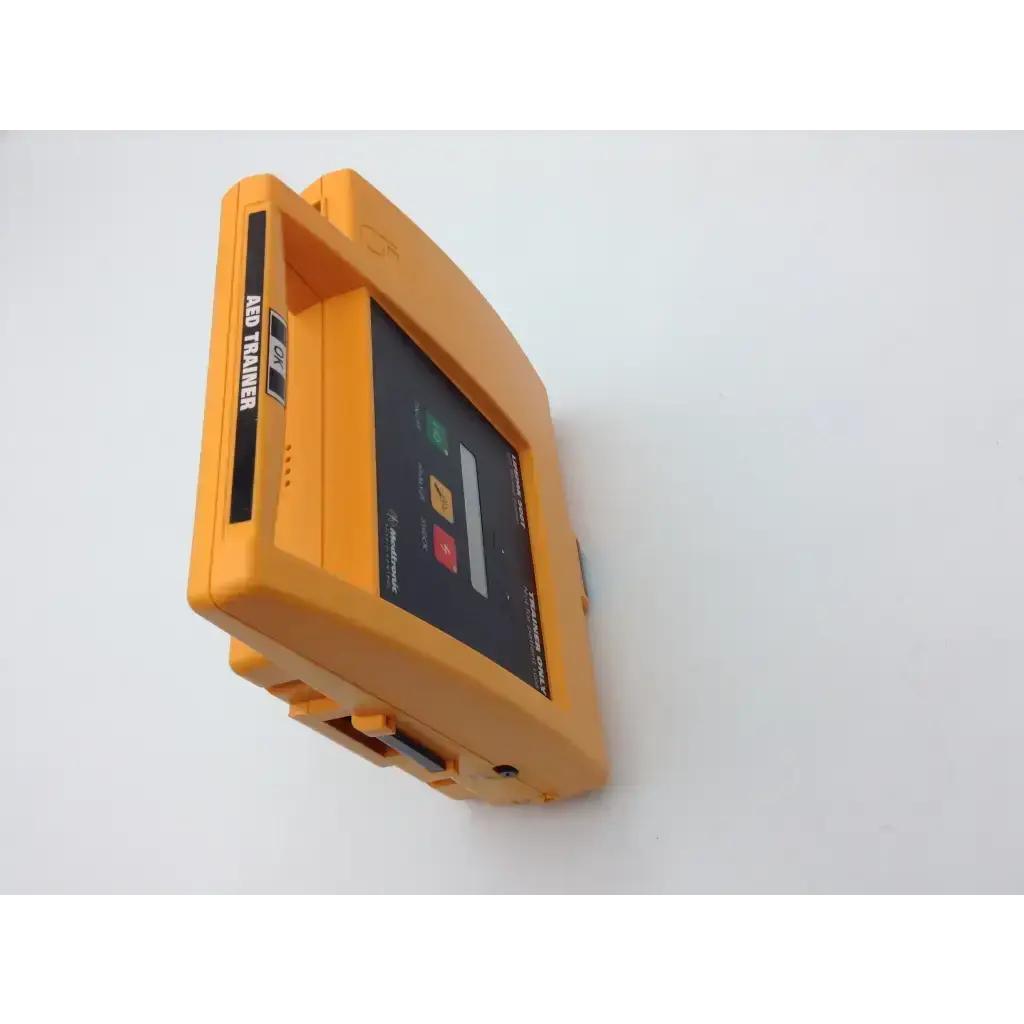

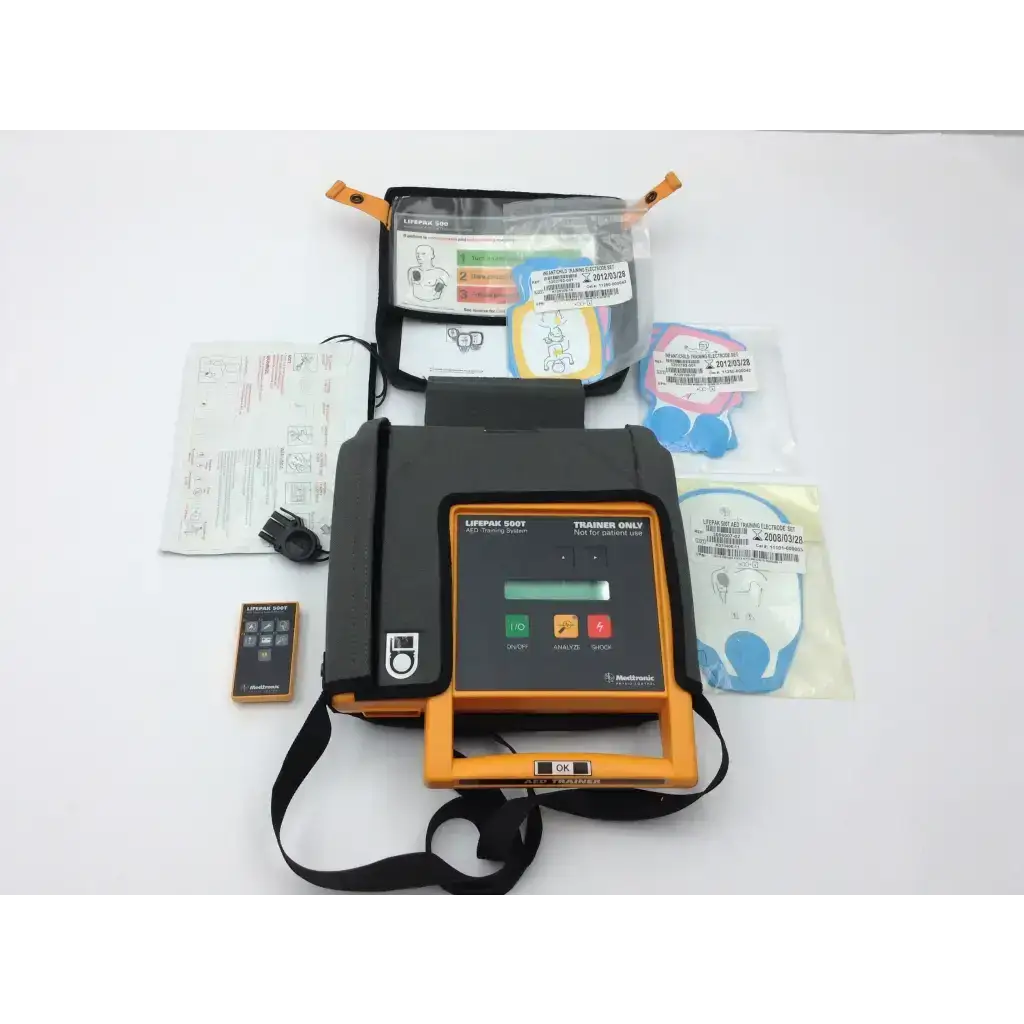

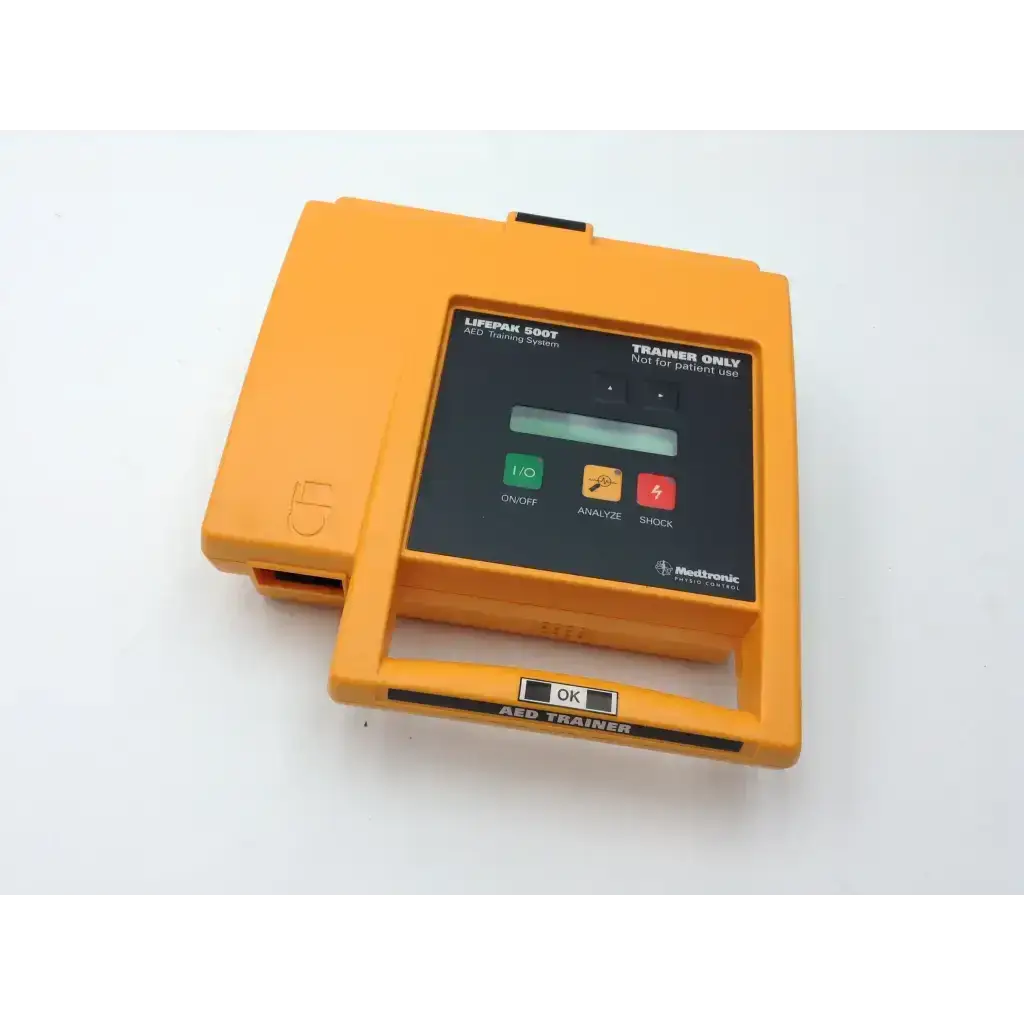

Medtronic Lifepak 500T AED Training System Features:
BBEE1
Specifications
General :
The device is designed for low-impact, low-stress environments. For use in temperature-controlled areas protected from precipitation.
Capable of withstanding heavy usage and prolonged periods of operation.
Size :
10.2 cm x 26.5 cm x 29.5 cm (4 in. x 10.4 in. x 11.6 in.) approximate
Weight: 2.1 kg (4.6 lb)
Batteries :
6 volts/4 cells, range 3.2 Vdc ~ 6.5 Vdc.
Four non-rechargeable D-cell alkaline batteries. New batteries will
provide not less than 100 hours of continuous operation under
normal indoor-environment conditions.
Buttons
ON/OFF, ANALYZE, SHOCK, UP ARROW, RIGHT ARROW
Screen Display
5 x 7 dot matrix liquid crystal display with two lines of 20
characters per line for text messages.
Speaker
Volume output: (average / maximum)
• Hi: 100dB / 108dB
• Med: 95dB / 105dB
• Low: 90dB / 101dB
Operating Temperature
3° to 38°C (37.4° to 100.4°F)
Storage Temperature
-10° to 60°C (14° to 140°F) (remove batteries for storage)
Water Resistance
Spillage resistance per IEC 601-1, part 44.3
Transmission
Wireless infrared signal. Range, 3 meters max. 82-inch optional cable attachment.
Size
4.57 cm x 3.38 cm x 1.65 cm (1.8 in. x 1.3 in. x .6 in.
Weight (without batteries)
32 grams (1.1 ounces)
Batteries
3 volts supplied from two AAA alkaline batteries.
Buttons
7-key membrane switch pad. Icon-labeled for the following functions: NO SHOCK, SERVICE WARNING / REQUIRED, ELECTRODE PAD CONTACT, MOTION, LOW / REPLACE BATTERY, CPSS, PAUSE
Operating Temperature
3° to 38°C (37.4° to 100.4°F)
Storage Temperature
-10° to 60°C (14° to 140°F) (remove batteries for storage)
Water Resistance
Spillage resistance per IEC 601-1, part 44.3
