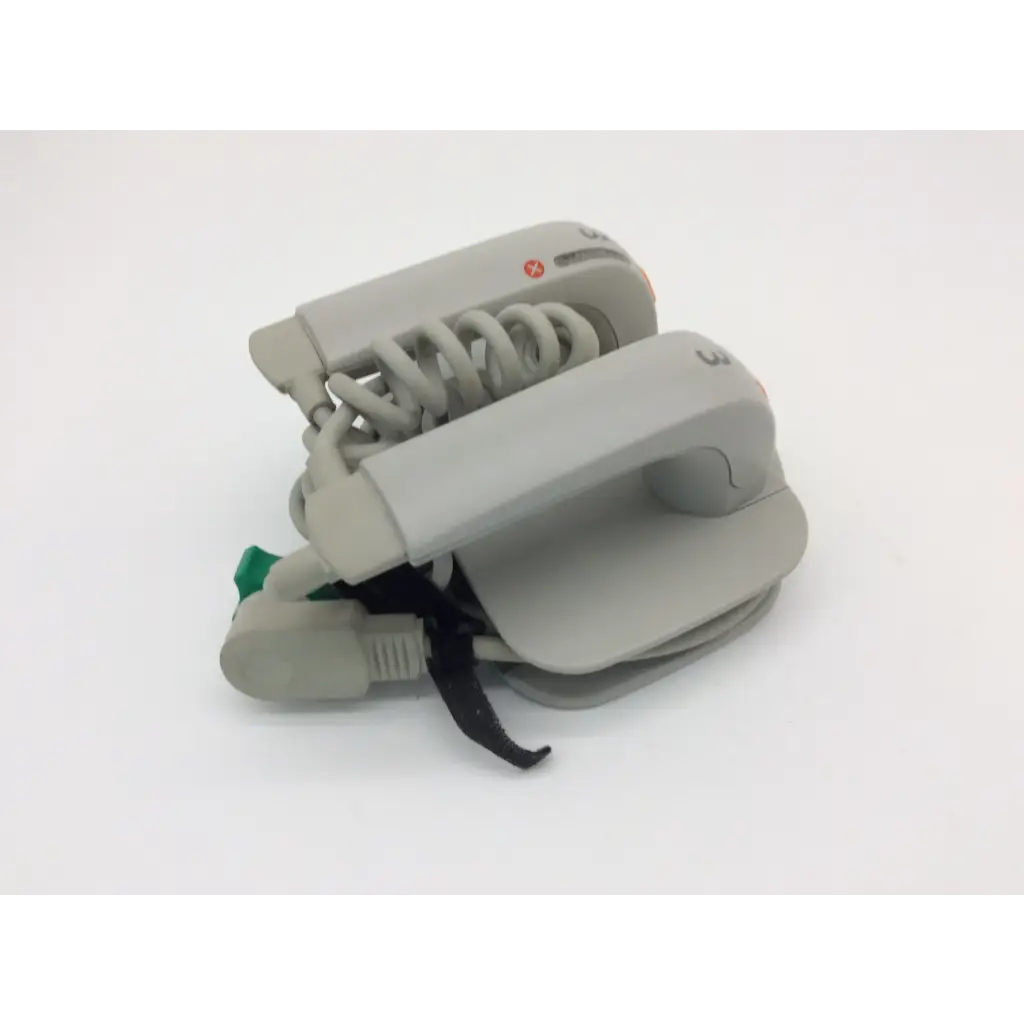

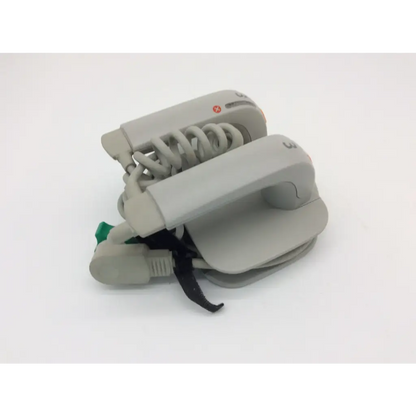

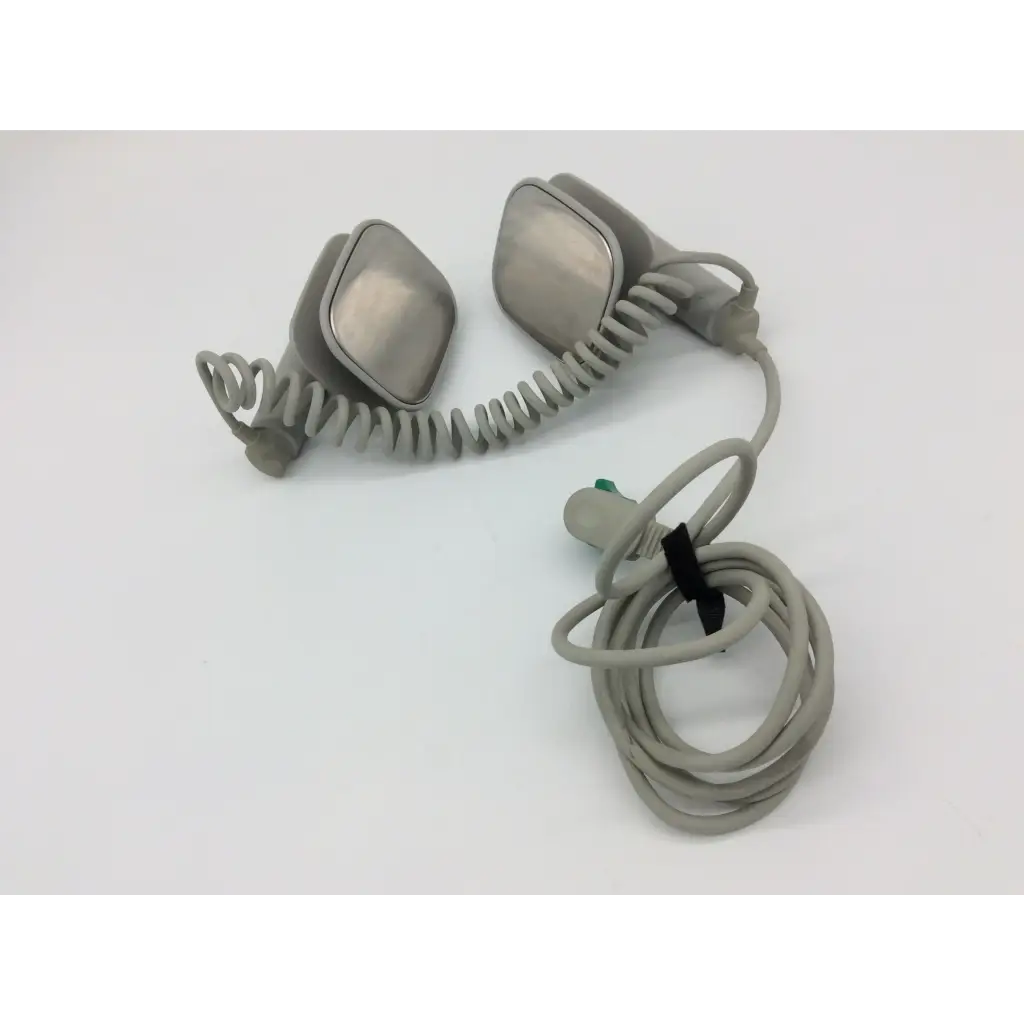

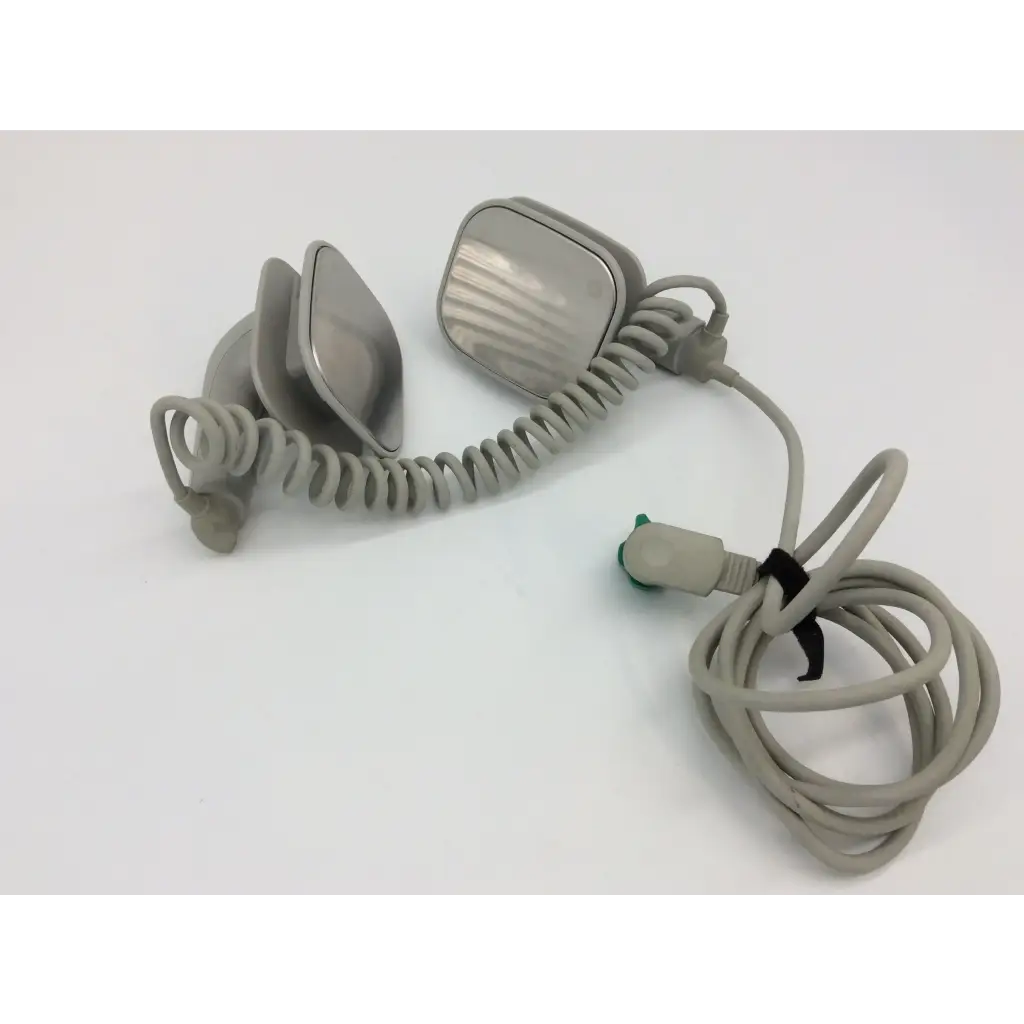

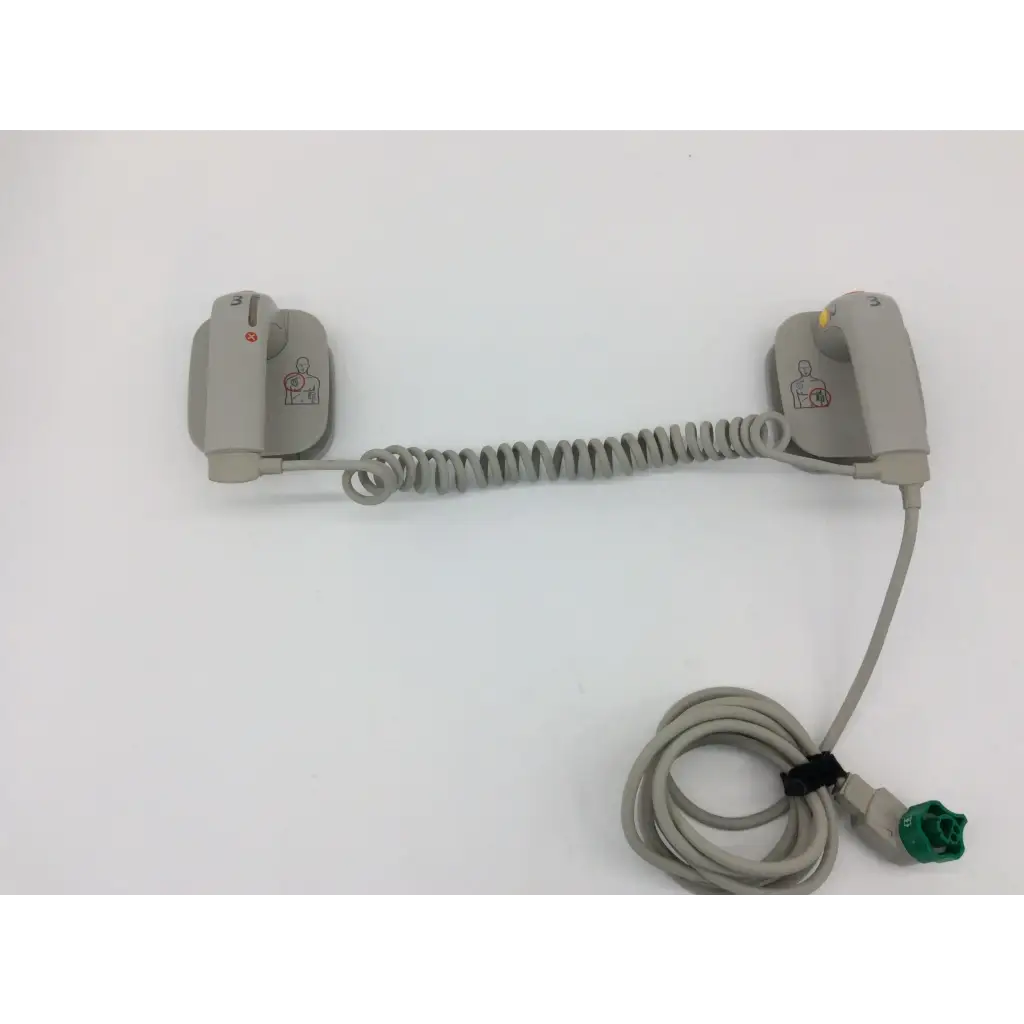

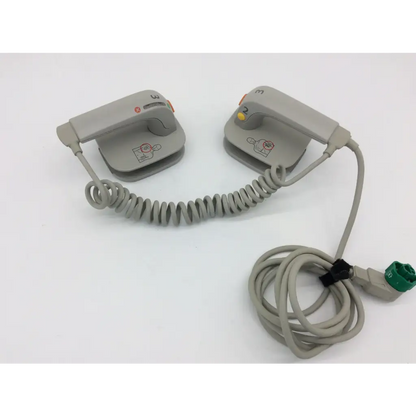

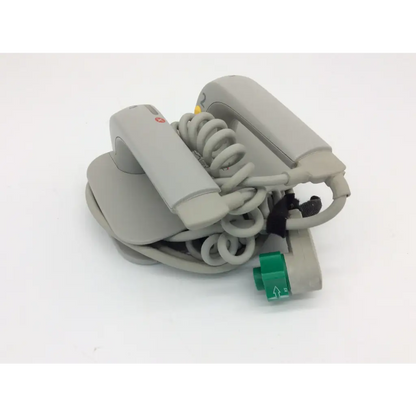

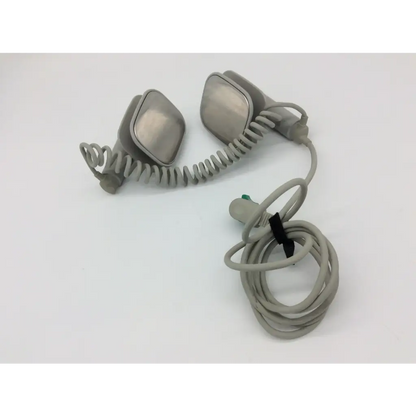

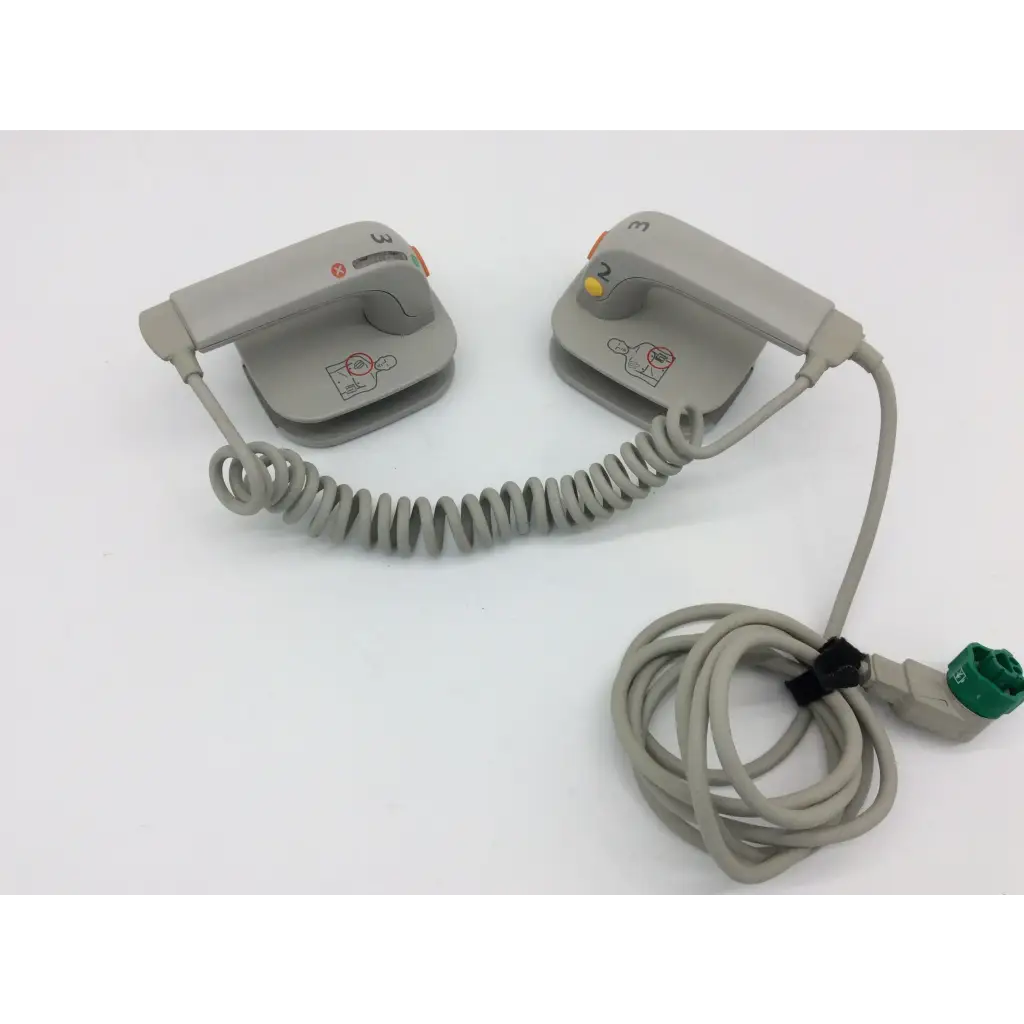

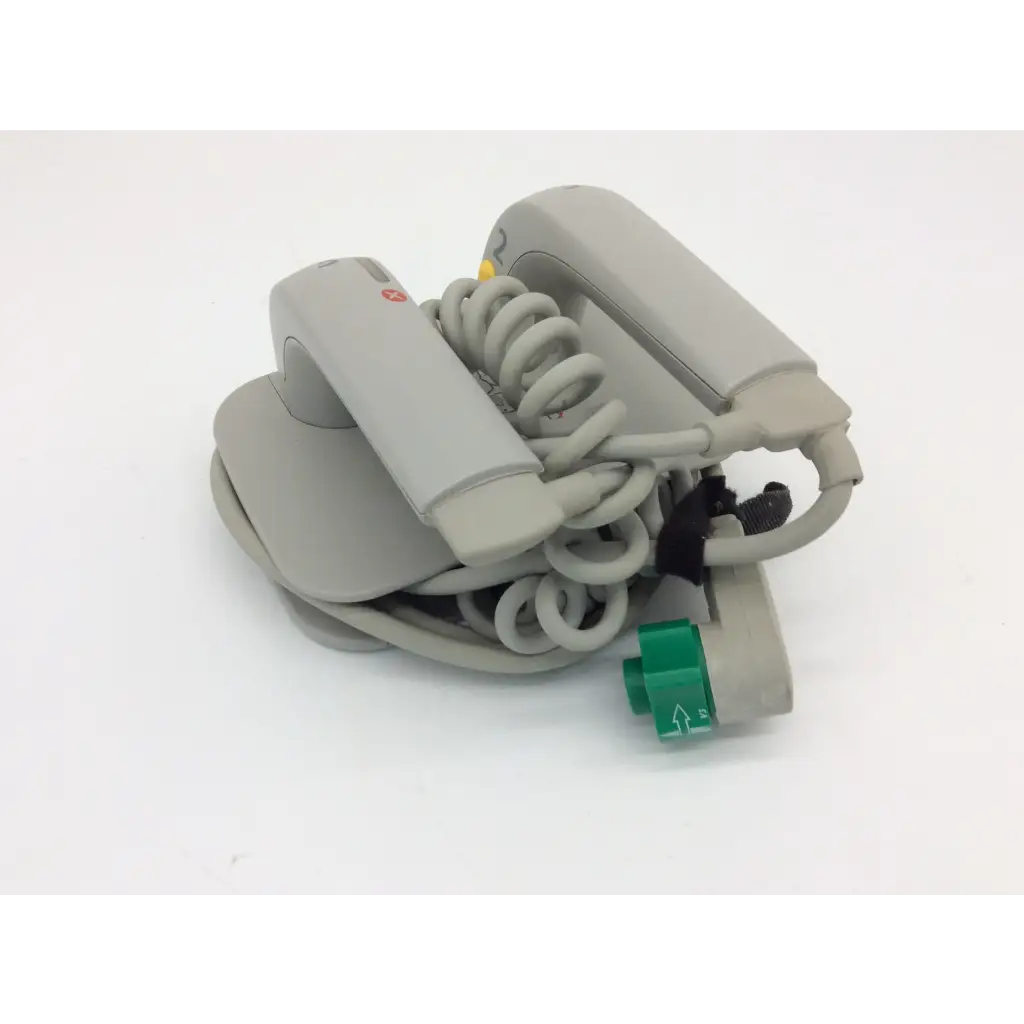

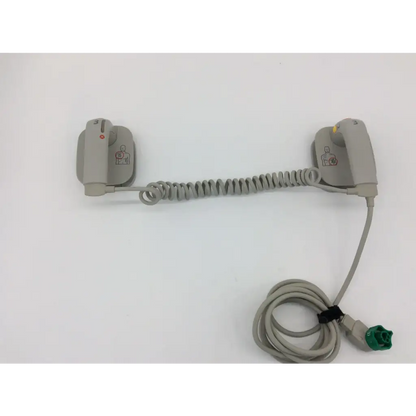

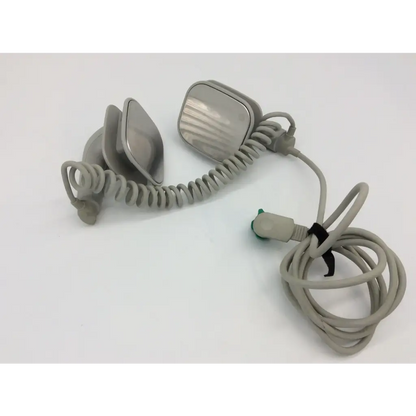

Philips External Hard Paddles Defibrillator M3543A Features

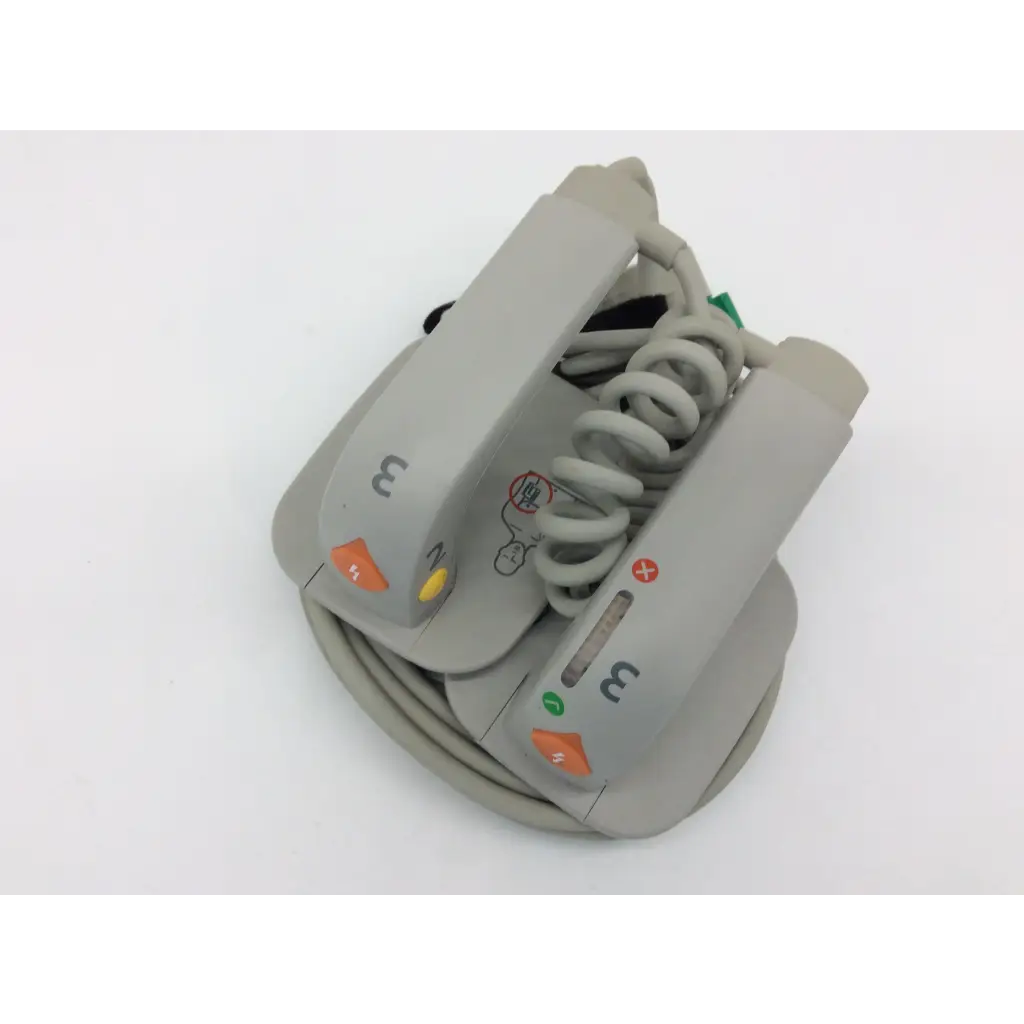

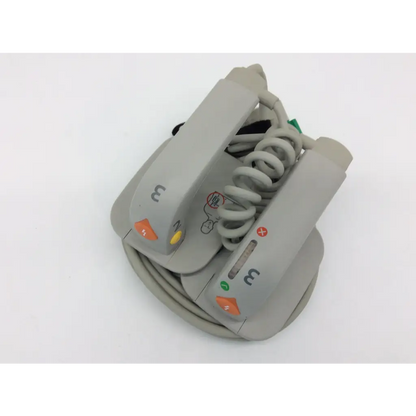

The Philips External Hard Defibrillator contains a patient contact indicator (PCI). See Figure 50. If necessary, as indicated by the appearance of either a red or orange LED on the PCI, adjust paddle pressure and placement to optimize patient contact. Once proper contact is made, the PCI shows a green LED.
Defibrillation is always performed through paddles or pads. However, during defibrillation, you may choose to monitor the ECG using an alternate ECG source (3-, 5-, or 10-lead monitoring electrodes).
If an alternate ECG source is connected, any available lead may be displayed.
BBBA4-1(16)
Specifications
General
Dimensions with paddles: 34.0 cm (W) x 21.0 cm (D) x 34.5 cm (H); (13.4 in. x 8.3 in. x 13.6 in.)
Weight: Less than 13.2 lbs. including pads, pads cable, battery, and a full roll of paper. The incremental weight of external standard paddles and paddle trays is less than 2.5 lbs. The additional battery weighs less than 1.8 lbs
Standard Operator Position: Within one meter of the device.
Defibrillator
Waveform: Biphasic Truncated Exponential. Waveform parameters are adjusted as a function of patient impedance.
Shock Delivery: Via multifunction electrode pads or paddles.
