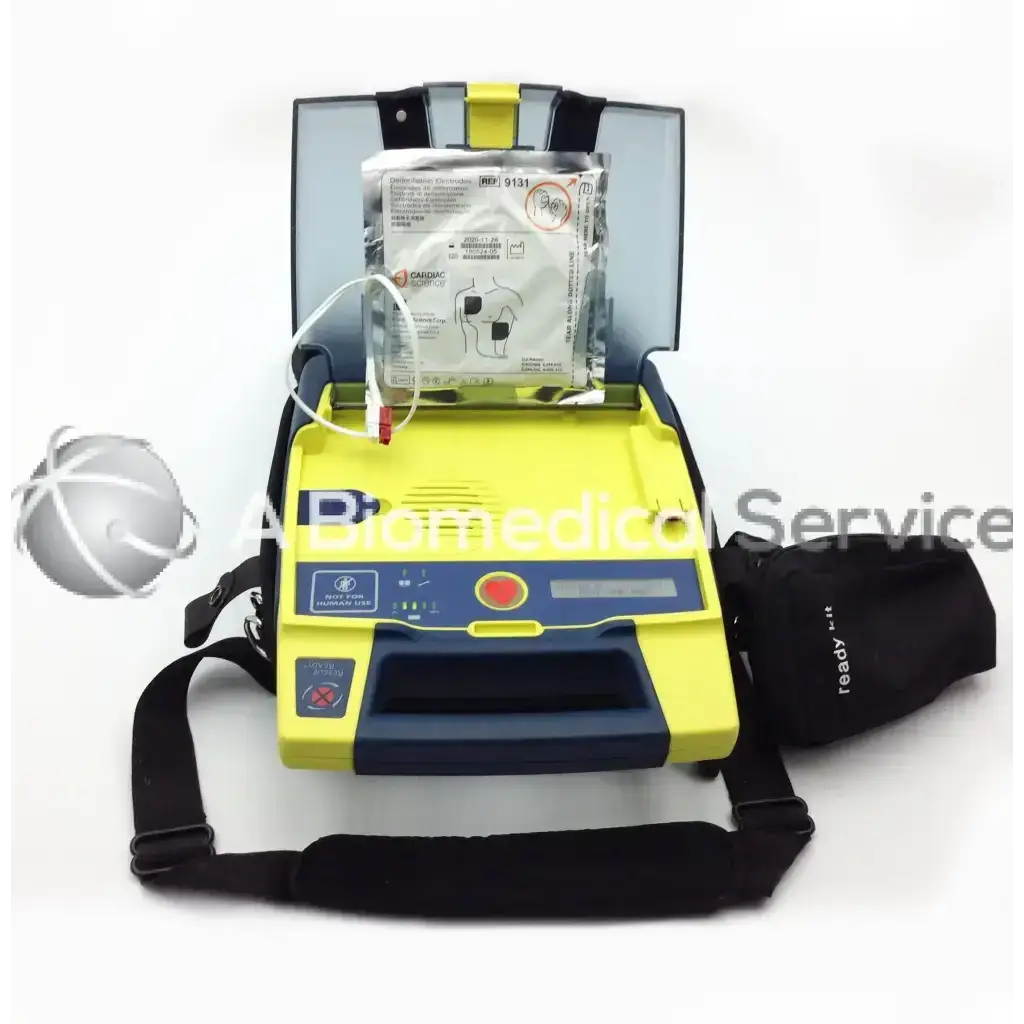

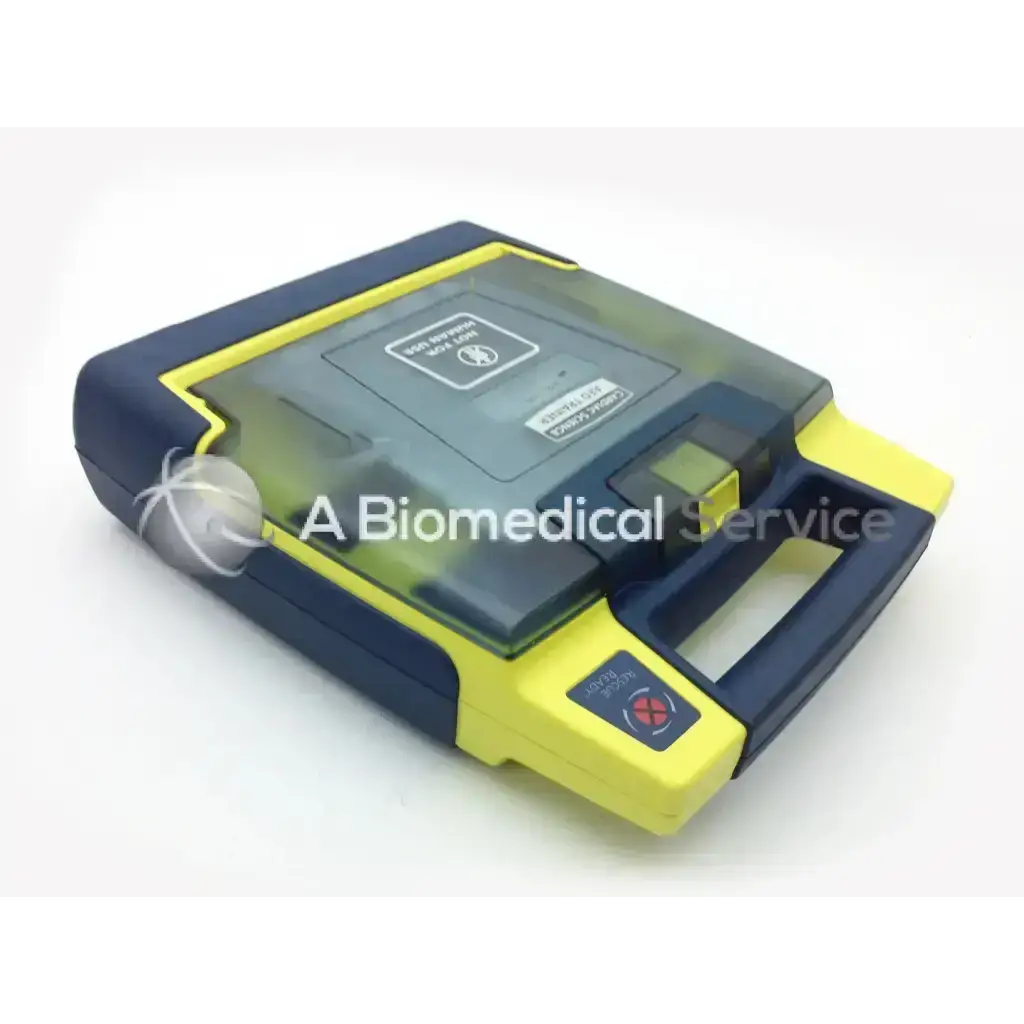

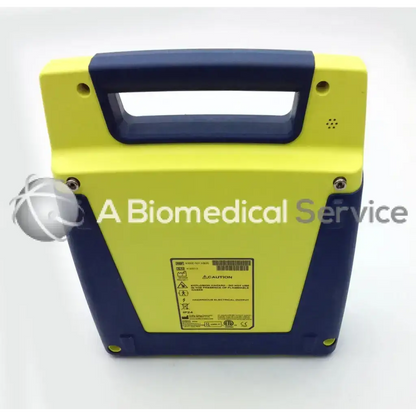

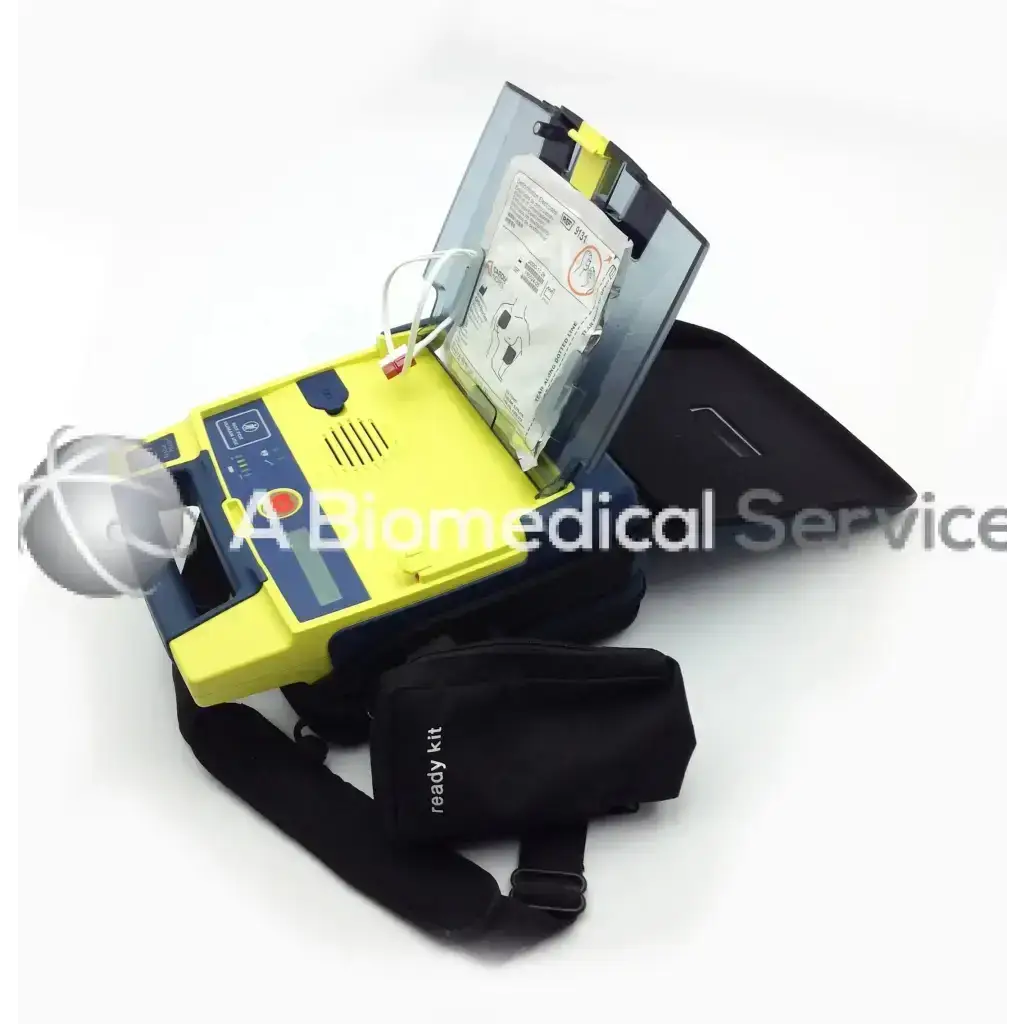

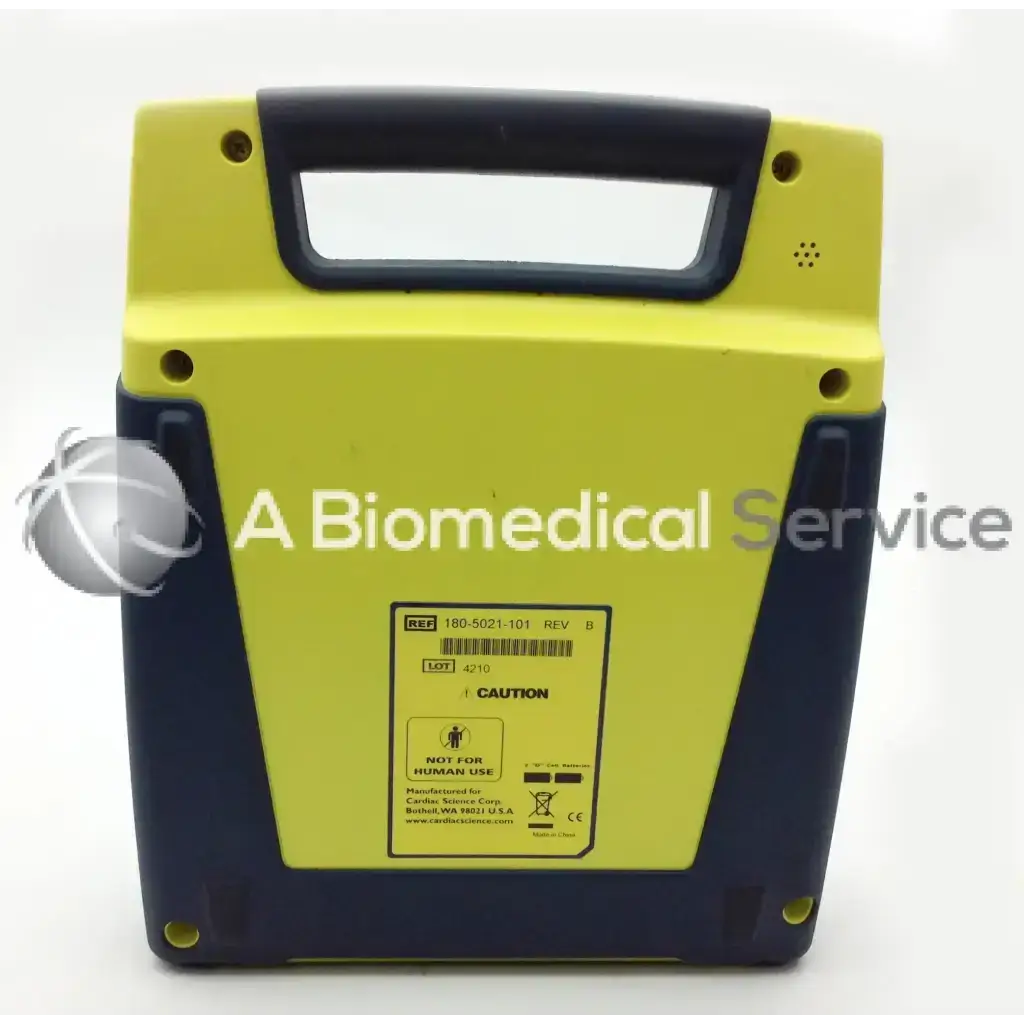

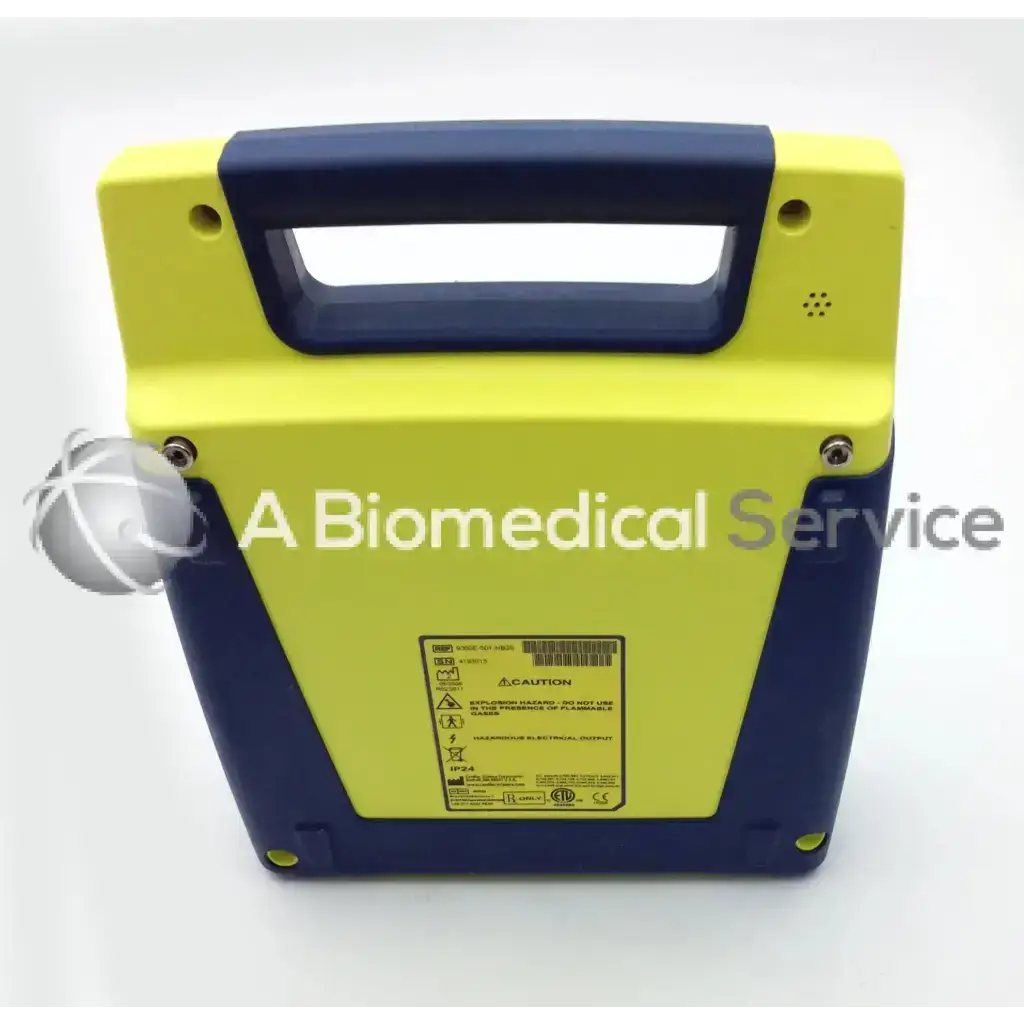

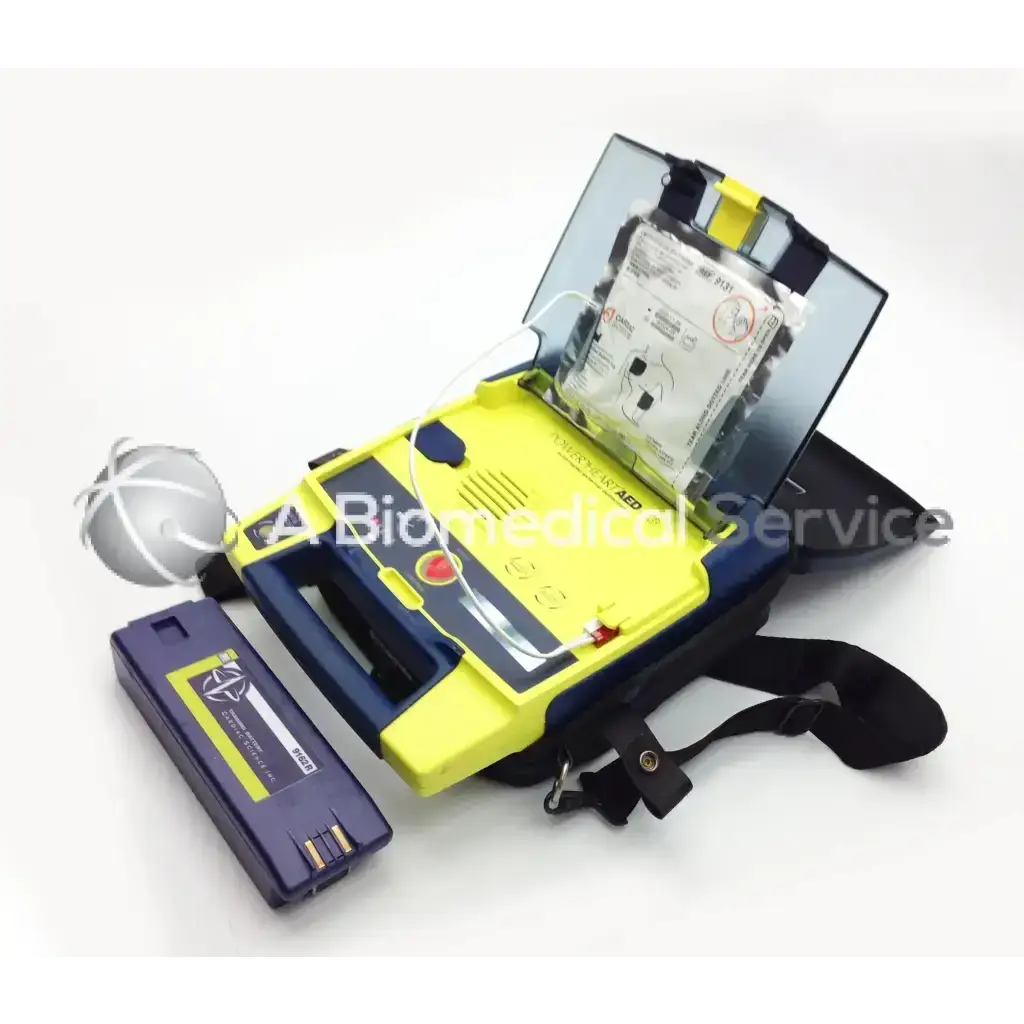

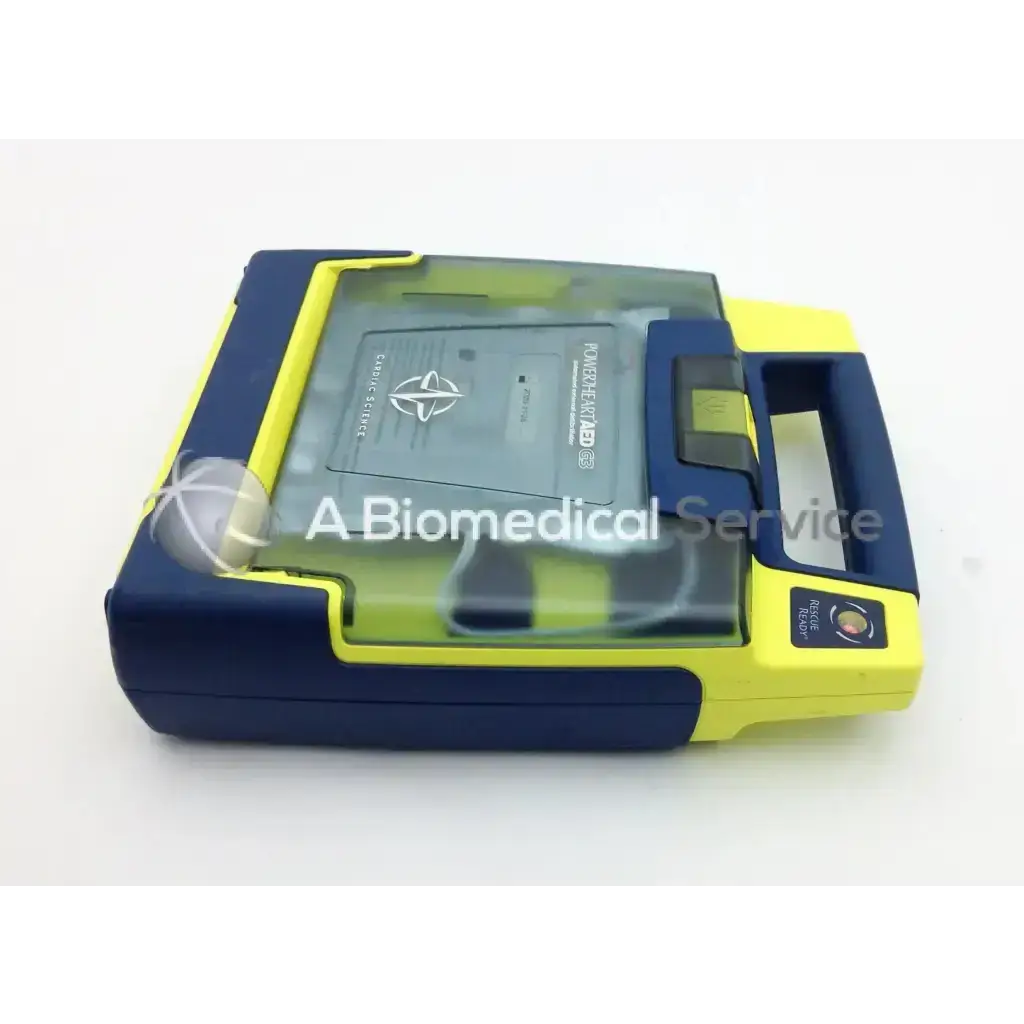

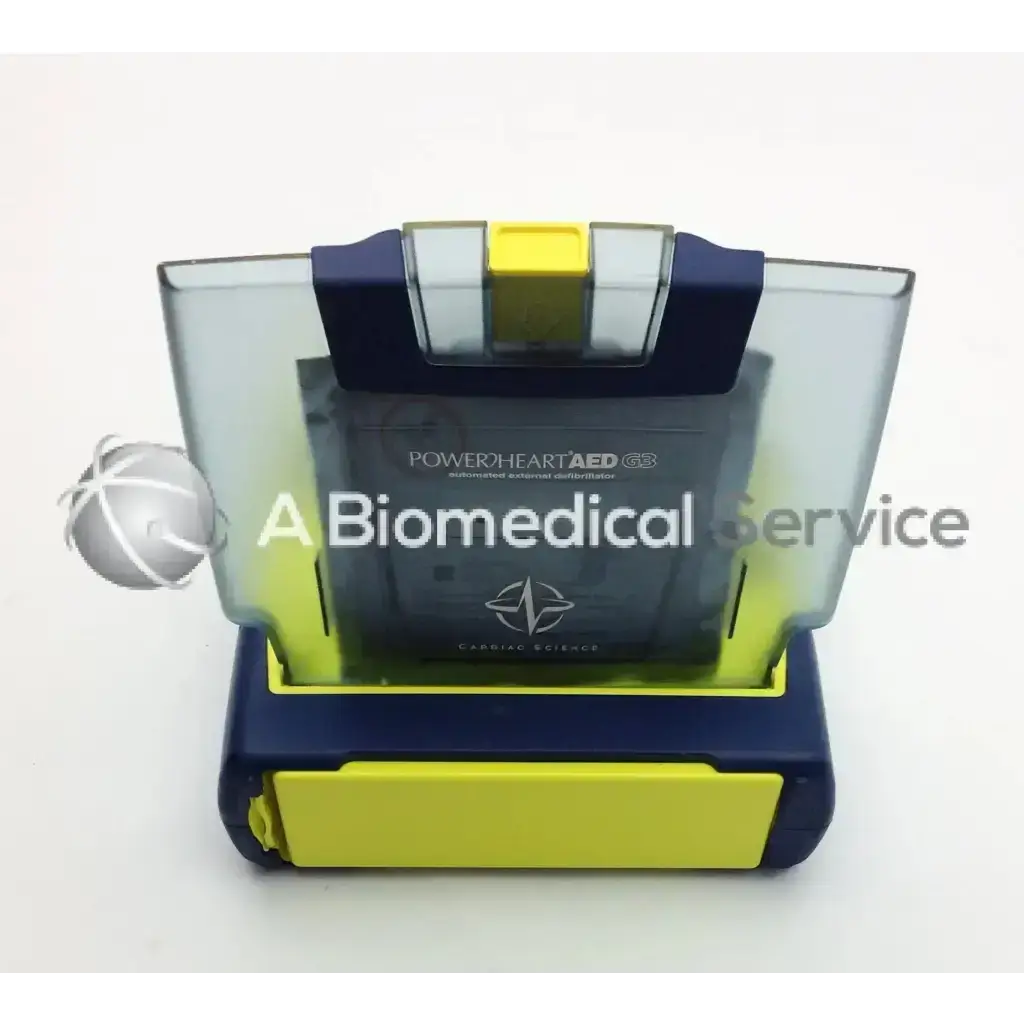

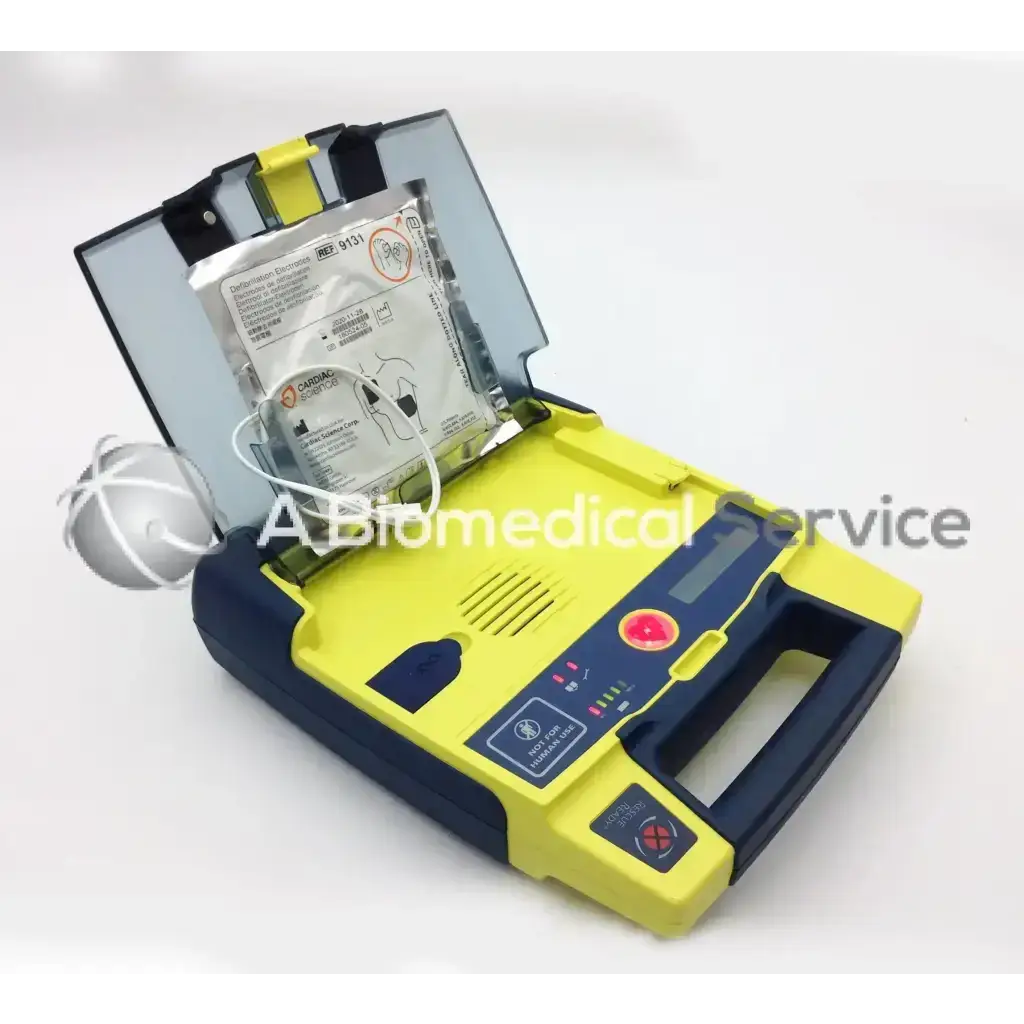

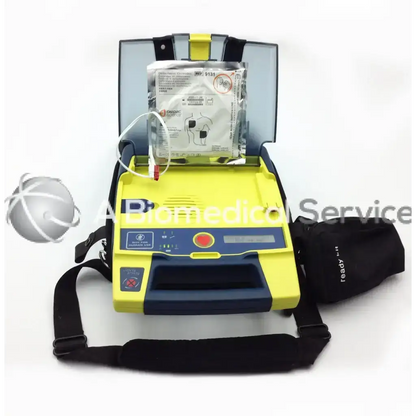

Cardiac Science AED Power Heart G3 w/ Carry Case, Pad, and Battery

SKU:
3 Months Limited Warranty
Certified Used
Regular price
Price
$550.00
Unit price
per
iso
Buy It Now

Cardiac Science AED Power Heart G3 w/ Carry Case, Pad, and Battery features:

The Powerheart AED G3 is a device intended to be used by personnel who have been trained in its operation. The user should be qualified by training in basic life support or other physician-authorized emergencies medical response.

The device is indicated for emergency treatment of victims exhibiting symptoms of sudden cardiac arrest who are unresponsive and not breathing. Post-resuscitation, if the victim is breathing, the AED
should be left attached to allow for the acquisition and detection of the ECG rhythm. If a shockable ventricular tachyarrhythmia recurs, the device will charge automatically and advise the operator to deliver therapy (G3) or automatically deliver the charge (G3 \Automatic).

When a patient is a child or infant up to 8 years of age, or up to 55 lbs (25kg), the device should be used with the Model 9730 Pediatric Attenuated Defibrillation Electrodes. The therapy should not be delayed to determine the patient’s exact age or weight.

 BBEE1-3



Specifications

Battery

     Output voltage: 12VDC
Specifications Batteries are non-rechargeable
  Lithium content: 9.2 g
Typical Shocks: 290 shocks
          Note: The battery operating life depends on the type of battery, device settings, actual usage, and environmental
factors.

Dimensions

       Height: 8 cm (3.3 in)

      Width: 27 cm (10.6 in)

       Depth: 31 cm (12.4 in)

Weight

                  (Batteries and Pads) 9300: 3.10 kg (6.6 lb)

Environmental Operation and Standby

            Temperature: 0°C to 50°C (32°F to 122°F)

                  Humidity: 5% to 95% (non-condensing)

Conditions Pressure: 57kPa (+15,000ft) to 103kPa (-500ft)

Pads

Self-adhesive, disposable defibrillation pads Minimum combined surface area: 228 cm2 Extended length of lead wire: 1.3 m



Environmental Conditions

Free Fall Drop: IEC 60068-2-32, 1 meter

 Bump: IEC 60068-2-29, 40g and 6000 bumps

Vibration (Random): IEC 60068-2-64: 10Hz – 2kHz, 0.005 – 0.0012 g2 /Hz

Vibration (Sine): IEC 60068-2-6: 10Hz – 60Hz, 0.15 mm and 60Hz – 150Hz, 2g

Enclosure Protection: IEC 60529, IP24

Vibration (random): RTCA DO-160D Section 8, category S, curve B

Temperature variation: RTCA DO-160D Section 5, category C

Temperature/altitude decompression/overpressure: RTCA DO-160D section 4, ca
