Valleylab Surgistat II ESU Valleylab

Valleylab Surgistat II ESU

SKU: P/0320/V/0267/S
90-day repair limited warranty
Cerfified Used
Regular price
Price
$2,000.00
Unit price
per
iso
Buy It Now

Valleylab Surgistat II Features

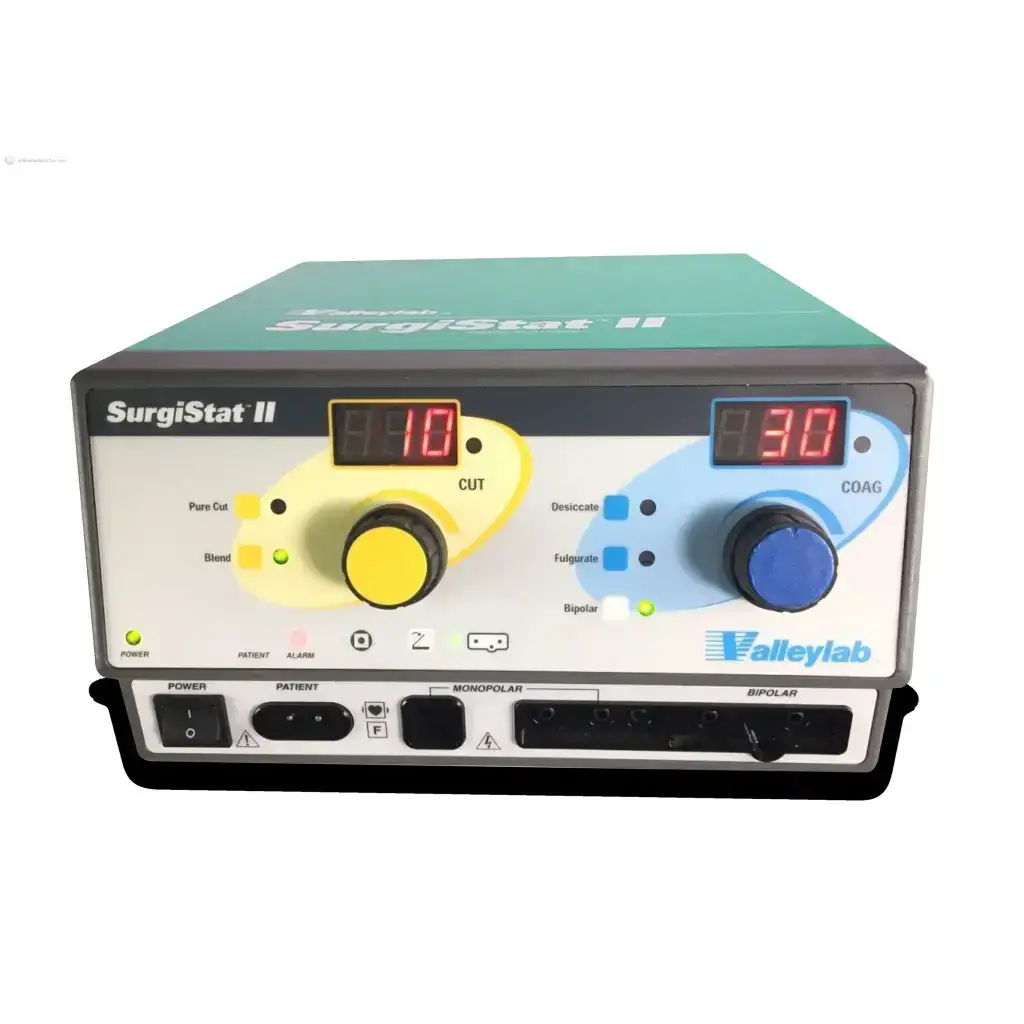

For general electrosurgery needs in the office, clinic, or emergency room, the Valleylab SurgiStat™ II generator provides exceptional performance, reliability, and safety benefits in a compact, easy to use unit.

  • Easy and quick to set up; compact and light
  • Saves time with automatic access to previously used power settings and modes
  • Provides precise surgical effect with power control dials
  • Performs most common office-based electrosurgical procedures
  • Provides ability to change power settings while activating the generator
  • Includes both monopolar and bipolar outputs
  • Accepts preferred accessories:
  • standard 3-pin pencil, most standard footswitching devices (with adapter), and standard Valleylab monopolar footswitch (optional)
  • standard 2-pin bipolar footswitching devices
  • Manufactured to the highest standards of quality in electrosurgical technology
  • Ensures consistent clinical performance over a variety of procedures
  • Increased patient safety with a return electrode contact quality monitoring system (RECQMS). The RECQMS system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected

    Specifications

    Valleylab Surgistat II Specifications

    Dimensions

    • Height: 14 cm (5.5 in)
    • Width: 26 cm (10.25 in)
    • Depth: 25.4 (10 in)
    • Weight: <6.5 kg (<14 lbs)

    RF Leakage

    • Bipolar <39 Arms
    • Monopolar <150 Arms

    Input Power

    • 110-120 Volts at 60 Hz

    PER = 86

    • PER (Power Efficiency Rating) is the measure of an electrosurgical generator’s ability to accurately deliver the selected power into a wide range of tissue types.

    Controls and Indicators

    • Mode Selection: Separate pushbuttons select modes (Cut or Blend, Desiccate, Fulgurate, or Bipolor)
    • PowerSetting: Dials adjust power in increments of 1 watt
    • Audible Tones: A continuous tone indicates activation; volume control is on the back panel. A dual tone, which is not adjustable, indicates an alarm condition; for example, compromised patient return electrode contact

    Receptacles

    • Front Panel: RECQMS patient return electrode receptacle (RECQMS system requires a split plate patient return electrode)
    • Receptacle for standard footswitching devices with adapters
    • Receptacle for standard 2-pin bipolar footswitching devices

    Rear Panel

    • Receptacle for standard Valleylab monopolar footswitch
