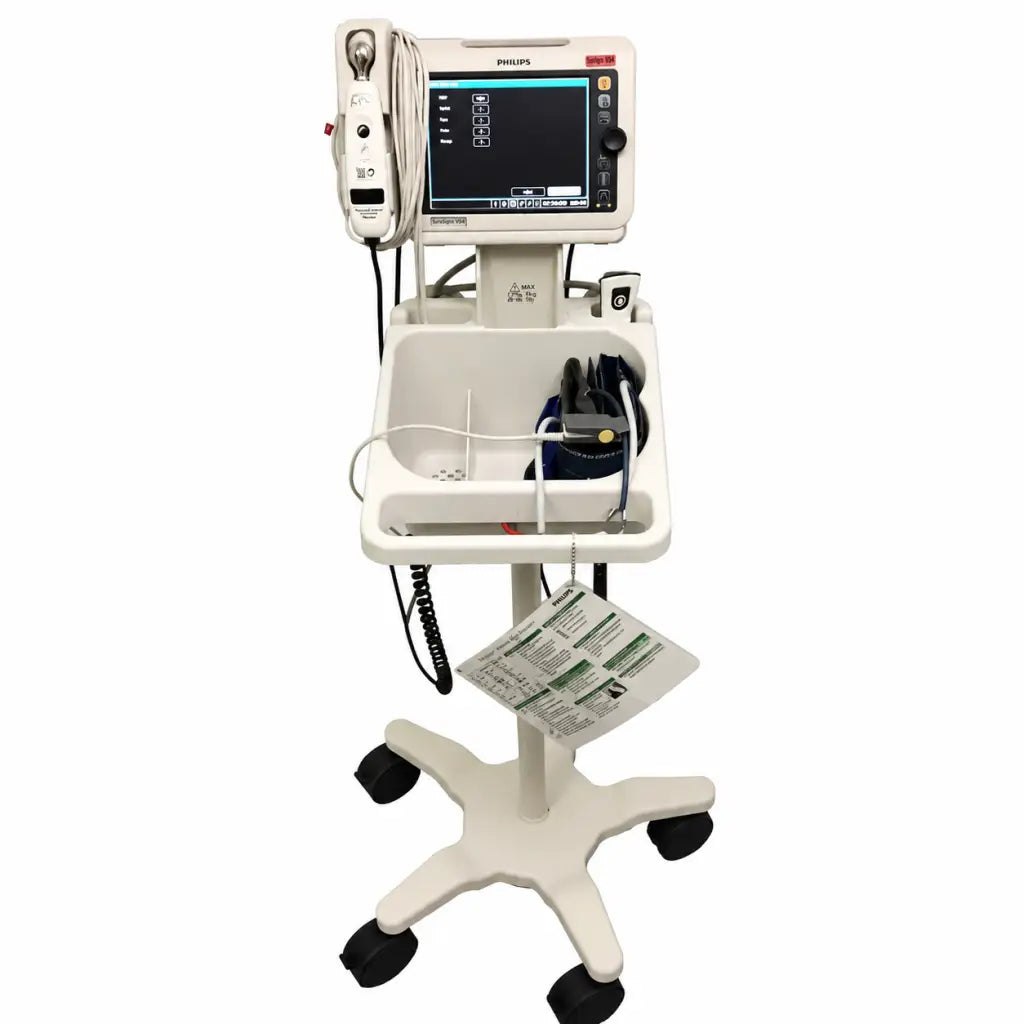

Philips SureSigns VS4 w/ SpO2, NIBP and Cart features:
The SureSigns VS4 is vital signs monitor for use on adult, pediatric, and neonatal patients. The functions performed by the system include
• Non-invasive blood pressure.
• Blood oxygen saturation
• Temperature In addition to monitoring and displaying the status of physiological parameters, the monitor performs various microprocessor-programmed analytical functions, including
• Creating both visual and audible alarm signals when settings are violated
• Creating and displaying warning messages when conditions are detected that would degrade or prevent valid measurements
• Creating and displaying tabular data • Providing input to an optional recorder for a printout of current or tabular data
The SureSigns VS4 vital signs monitor operates from either an AC power source or battery power. The monitor charges the battery when powered by an AC line.
Specifications
Width, height, depth
W: 26 cm (10.2 in), H: 22 cm (8.6 in), D: 14.5 cm (5.7 in)
Weight
3.6 kg (8 lb)
Screen
21.3 cm (8.4 in) SVGA TFT-AM LCD, resistive touchscreen, 800 active pixels/line Resolution: 600 active lines per frame Viewing angle: ±60 degrees
Temperature Covidien™
Equivalency modes: ear (no adjustment), oral, core, and rectal (adjusted from ear)
Range: 33 – 42.0 °C (91.4 – 107.6 °F)
Accuracy (overall range): ±0.2 °C (±0.4 °F)
Measurement response time: ≤ 2 seconds
Temperature Exergen® temporal
Range: 16 – 43 °C (60.8 – 109.4 °F)
Accuracy: ±0.1 °C (±0.2 °F)
Response time: approximately 1 second
Battery Lithium
ion, 10.8 – 11.1 V
Data output
HL7 format, via Ethernet port Serial data
NBP
• Oscillometric using stepwise deflation pressure – NBP interval choices
• Adult measurement range – Systolic: 30 – 270 mmHg (4.0 – 36.0 kPa) – Diastolic: 10 – 245 mmHg (1.3 – 32.7 kPa) – MAP: 20 – 250 mmHg (2.7 – 34.0 kPa)
• Pediatric measurement range – Systolic: 30 – 180 mmHg (4.0 – 24.0 kPa) – Diastolic: 10 – 150 mmHg (1.3 – 20.0 kPa) – MAP: 20 – 160 mmHg (2.7 – 21.3 kPa) • Neonatal measurement range – Systolic: 30 – 130 mmHg (4.0 – 17.0 kPa) – Diastolic: 10–100 mmHg (1.3 – 13.3 kPa) – MAP: 20 – 120 mmHg (2.7 – 16.0 kPa)
• The NBP measurement has an accuracy over the ranges listed for these values – Maximum standard deviation: 8 mmHg – Maximum mean error: ±5 mmHg
• Subsequent cuff inflation (in NBP interval mode only) – The subsequent inflation pressure is determined automatically depending on the previous measurement and patient type
Temperature Welch Allyn
Predictive Modes: predictive and monitored Probe sites: oral, rectal, or axillary
Range: Monitor mode: 26.7 – 43.3 °C (80.1 – 109.9 °F)
Predictive mode: 34.4 – 40.6 °C (93.9 – 105.1 °F)
Accuracy: ±0.1 °C (±0.2 °F)
Measurement time: 4 - 6 seconds
