Olympus IMH-20 Image Management Hub HD Medical Video Recorder
Description
The Olympus IMH-20 Image Management Hub is a professional medical imaging and recording system designed to capture, record, manage, and review high-definition still images and video from compatible Olympus imaging systems. It supports two-channel simultaneous recording and provides a built-in touch-panel interface for image capture and recording control.
What’s Included
- Olympus IMH-20 Image Management Hub
No additional cameras, scopes, cables, external storage devices, discs, USB media, keyboard, manuals, software, accessories, adapters, or other components are included unless specifically shown or stated.
Specifications
- Manufacturer / Brand: Olympus
- Model Number: IMH-20
- Product Type: Image Management Hub / Medical Video Recorder
- Video Recording Format: MPEG-4 AVC / H.264
- Still Image Formats: BMP, TIFF, JPEG
- Compatible Media: Internal HDD, Blu-ray, DVD, USB device
- Internal HDD Capacity: 500 GB

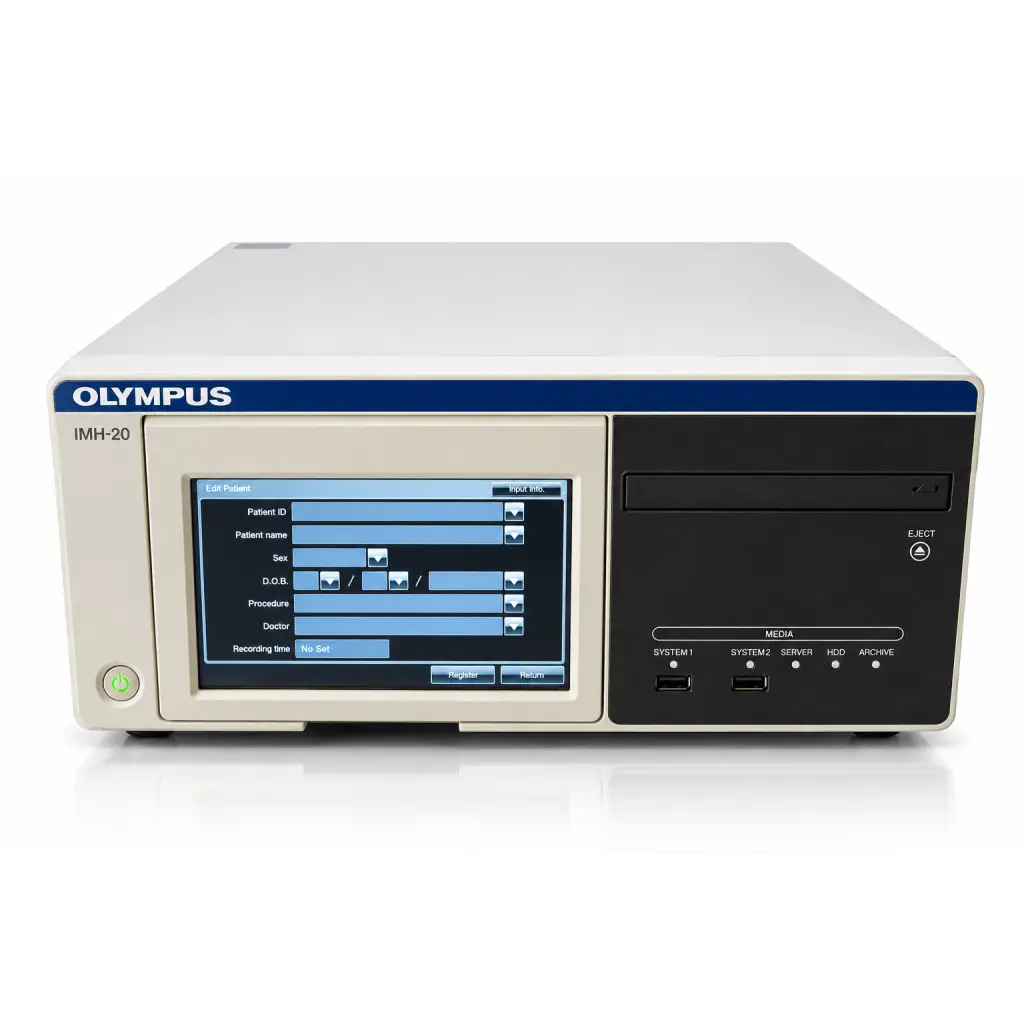

- Display: 7-inch LCD touch panel
- Recording Capability: Two-channel simultaneous real-time recording

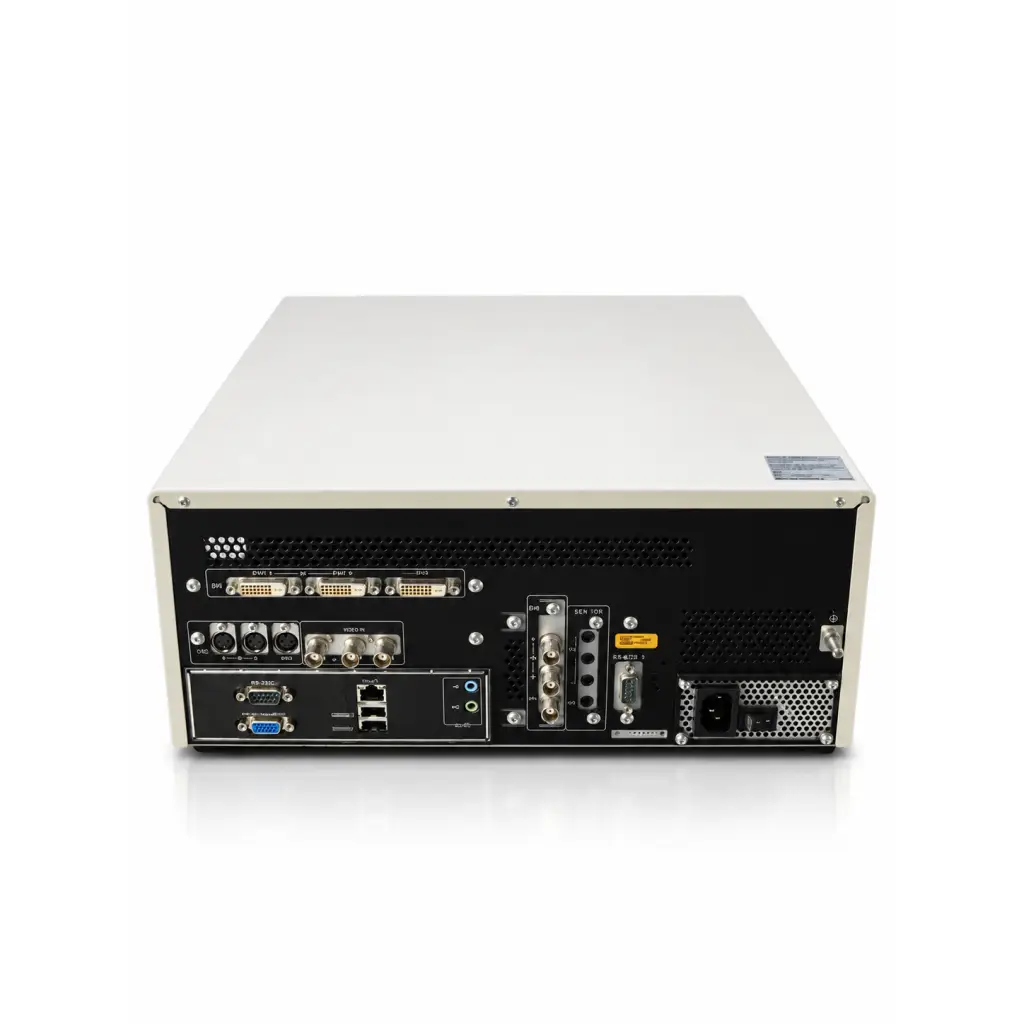

- Video I/O: HD/SD-SDI, DVI, Y/C, Composite; 2 inputs / 1 output
- Serial Remote: RS232C and stereo mini-pin jack
- Dimensions (W x H x D): 370 x 167.5 x 413 mm
- Weight: Approx. 10.7 kg (23.6 lb)
- Input Current: 1.9–0.8 A
- Application: Professional medical imaging, endoscopy, procedure documentation, and image/video management
Features
- Full HD still-image and video recording
- Two-channel simultaneous recording from two image sources
- 7-inch touch-panel display for real-time capture and recording control
- 500 GB internal hard drive
- Supports Blu-ray, DVD, USB devices, and HDD storage workflows
- Designed for integration with compatible Olympus medical imaging systems
Condition

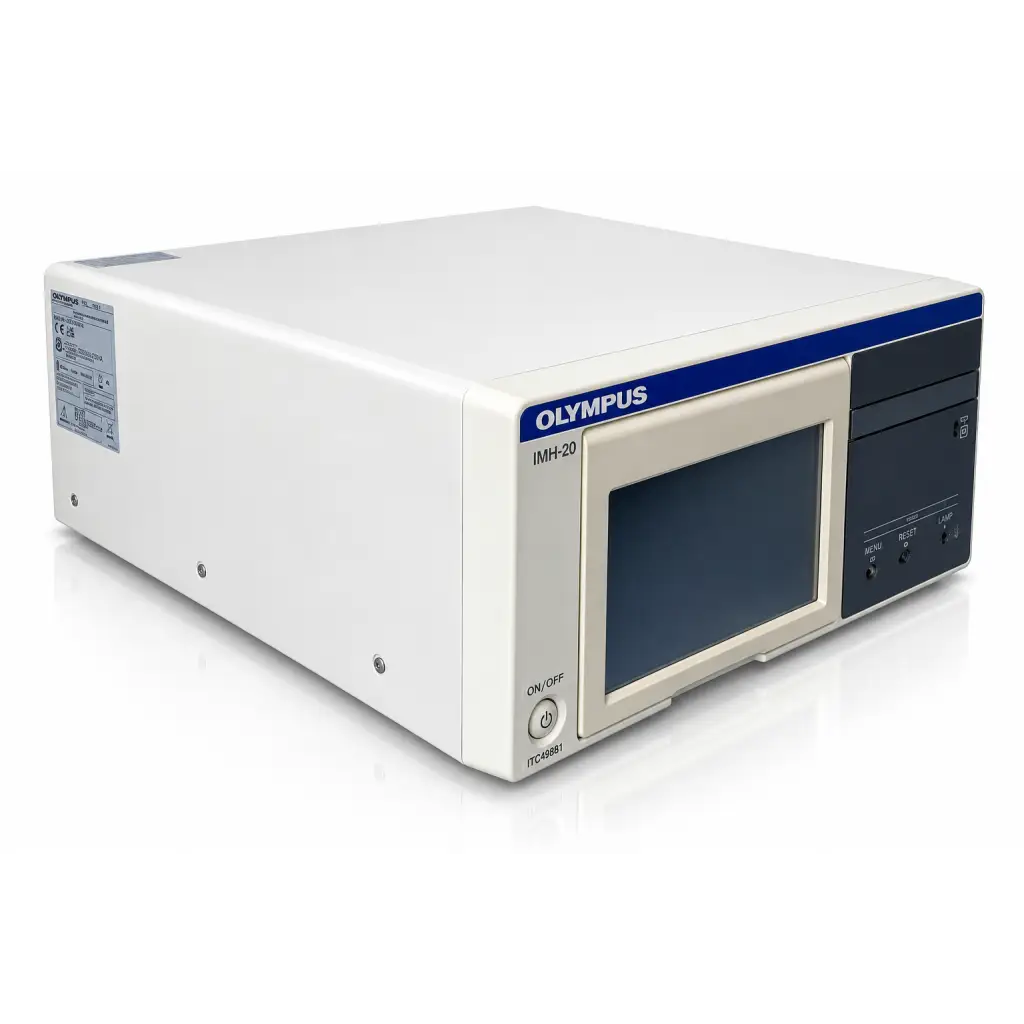

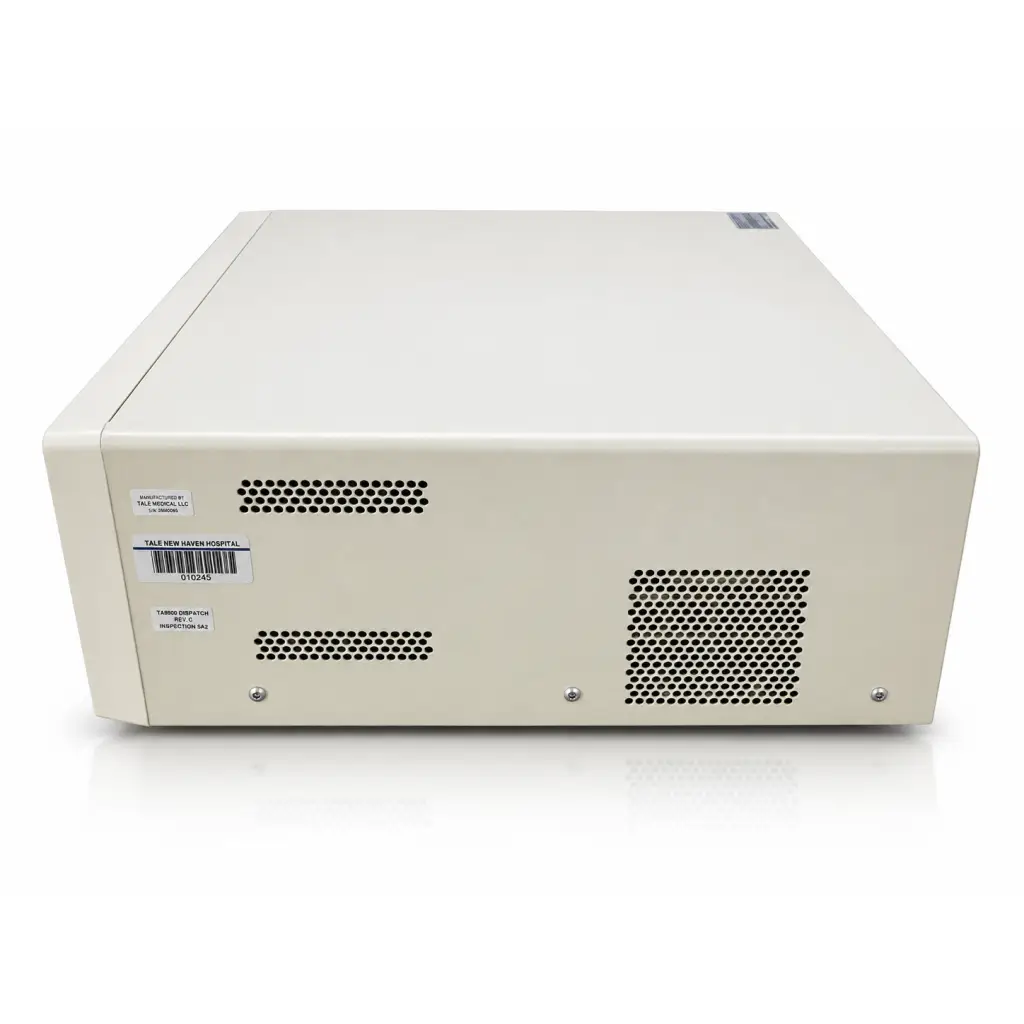

This item is pre-owned and shows normal cosmetic wear consistent with prior professional use and handling. Please review the photo carefully for the exact cosmetic condition.
Testing Performed
The display is illuminated and shows the system interface. No further functional, recording, network, media-drive, input/output, or calibration testing information was provided.
Biomedical Testing and Use Disclosure
This item must be inspected and approved by qualified personnel before installation, service, or use. No representation is made regarding compatibility, calibration, certification, or readiness for immediate operation unless expressly stated in writing.
Before use, the buyer is responsible for verifying:
- Full functional condition
- Compatibility with the intended Olympus or third-party equipment
- Proper installation, configuration, and operation
- Applicable maintenance or service requirements
- Facility and workplace safety requirements
- Compliance with manufacturer instructions
- Compliance with applicable laws, codes, and operating procedures
This item should not be placed into service until it has passed all required inspection, installation, functionality, and safety checks.
FDA / Medical Device Disclaimer
The buyer is responsible for ensuring that the item is properly inspected, installed, tested, maintained, and used in accordance with all applicable laws, regulations, manufacturer instructions, and facility requirements.
No warranties or representations are made regarding regulatory clearance, certification, compatibility, or suitability for a specific regulated application unless expressly stated in writing.
Shipping / Handling Notice
Professional medical imaging equipment may require special handling, protective packaging, configuration, inspection, or service after transport. Buyer is responsible for confirming condition, compatibility, and functionality after delivery and before any use.
Included Items Disclaimer
Only the item shown in the photo or specifically identified in this listing is included. No additional cameras, scopes, cables, storage media, manuals, software, accessories, adapters, or other components are included unless expressly stated.
