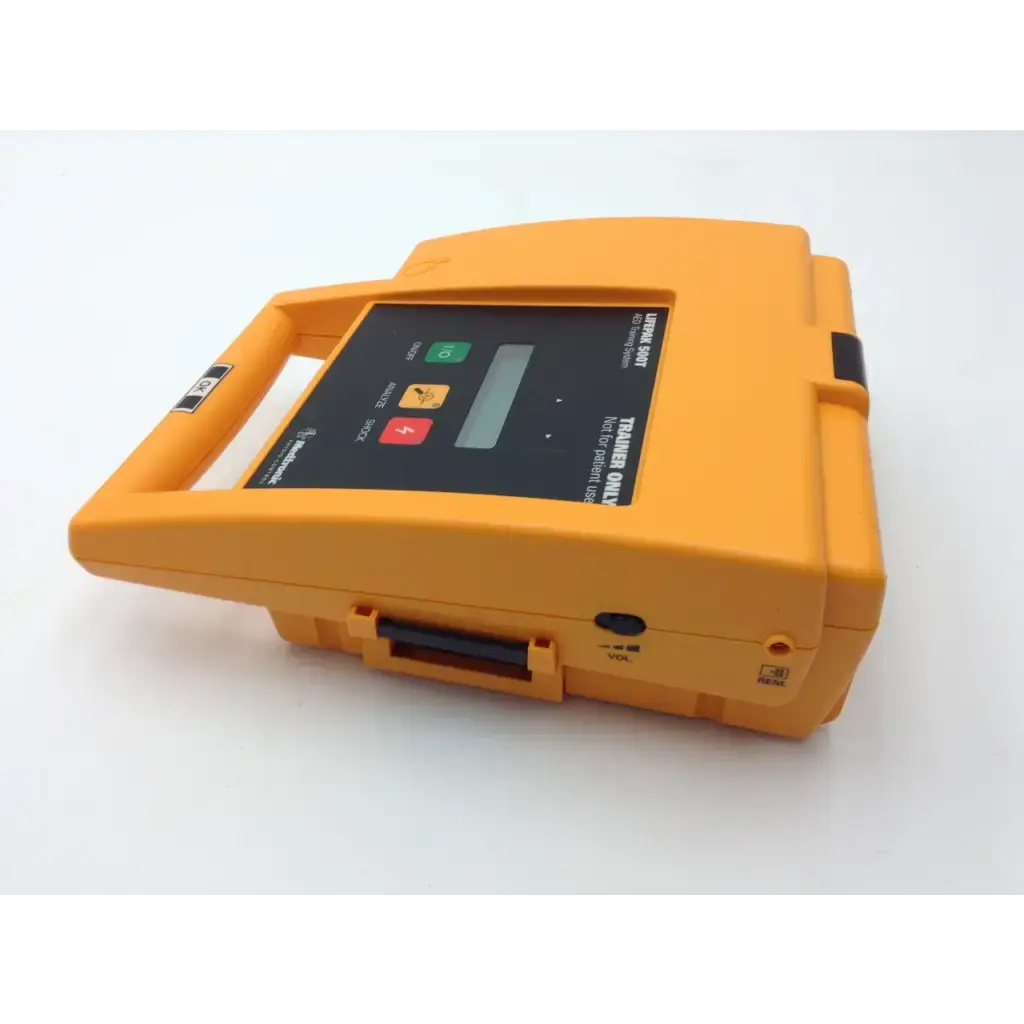

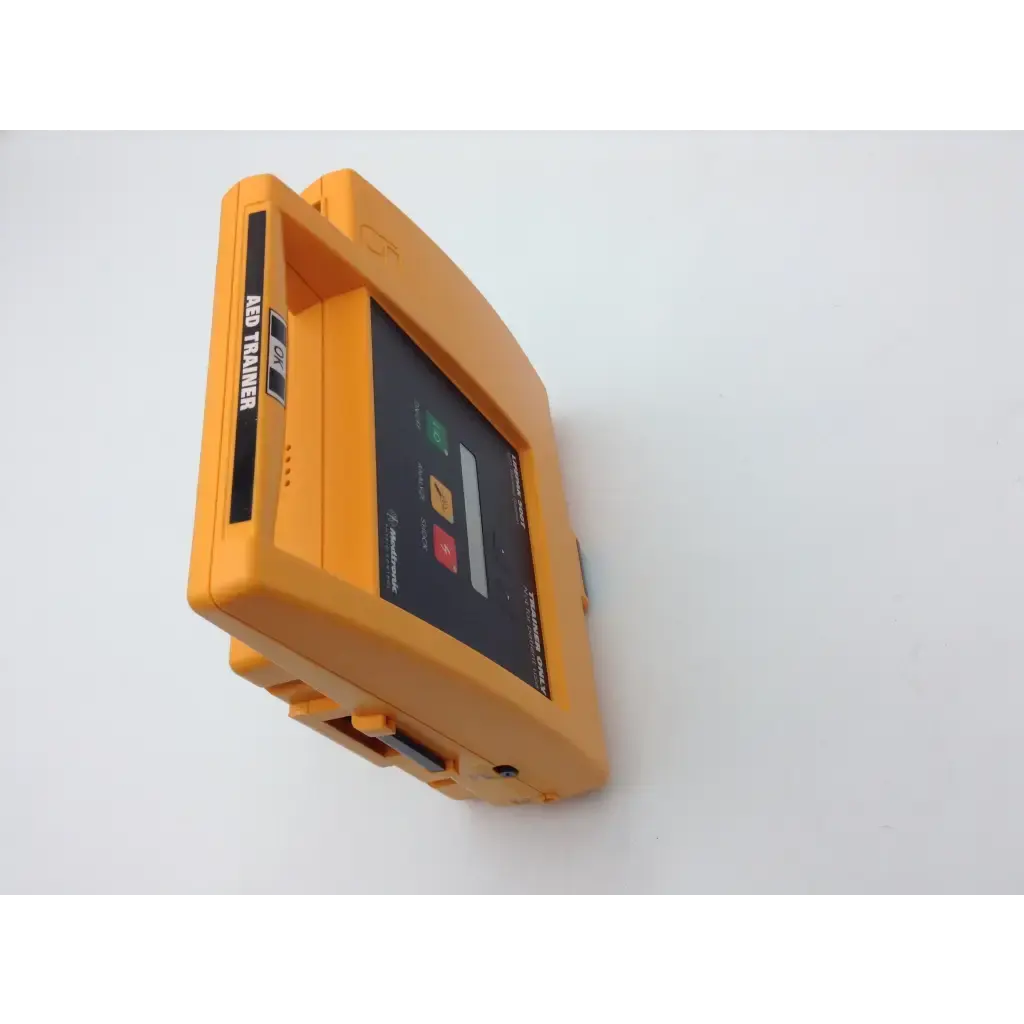

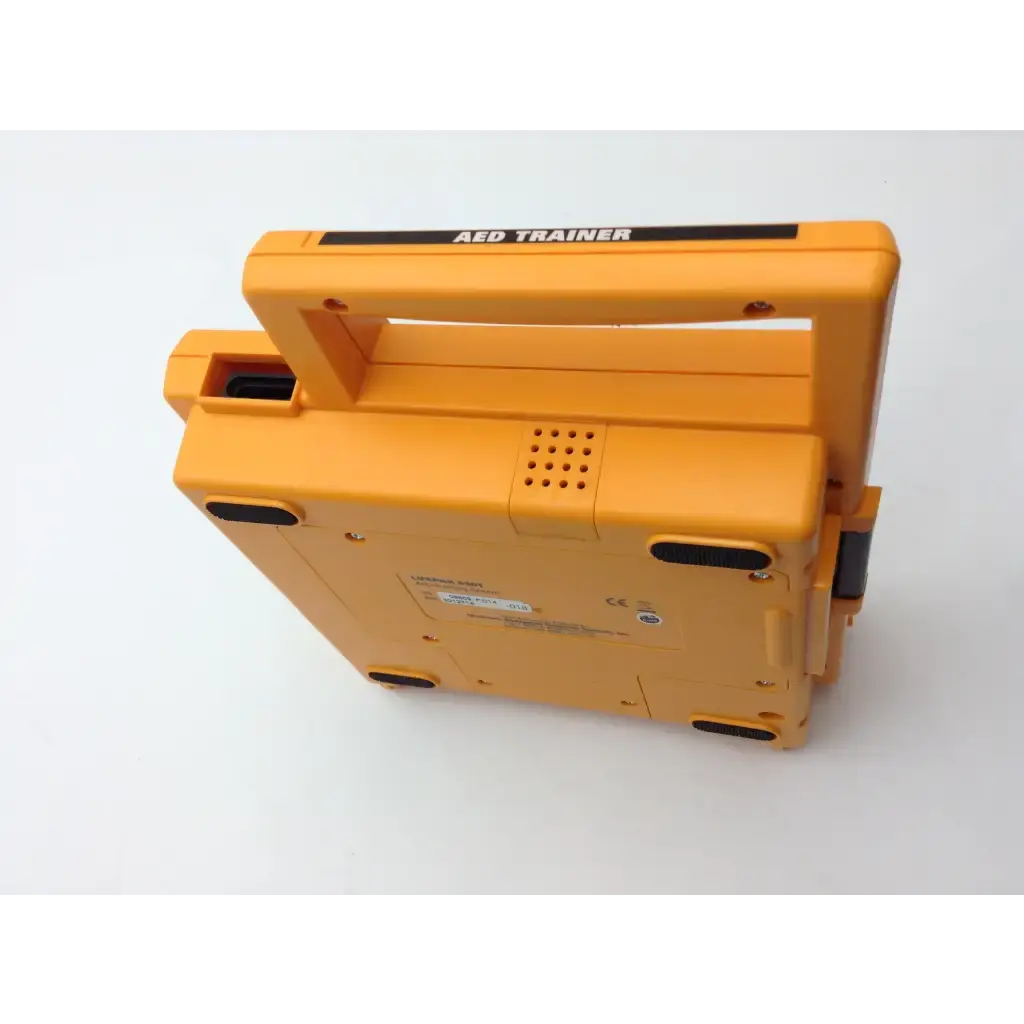

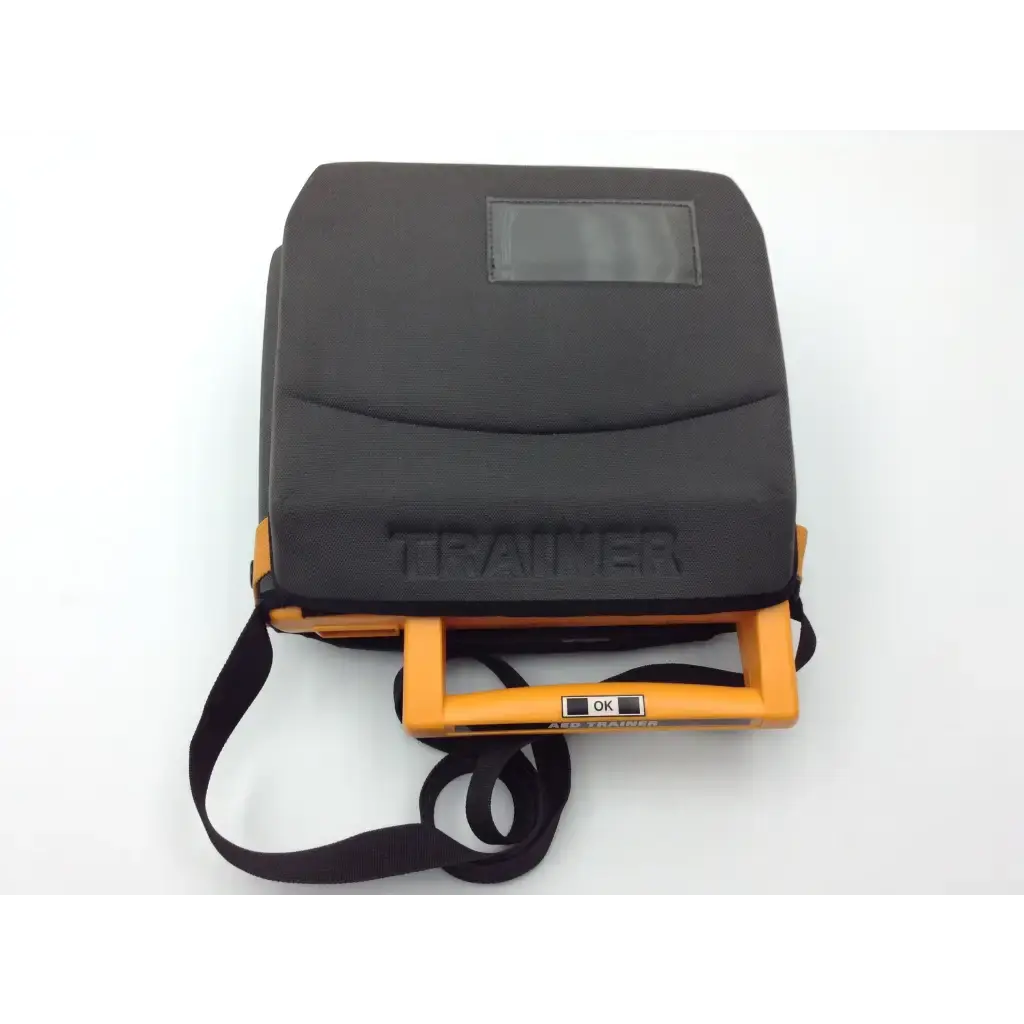

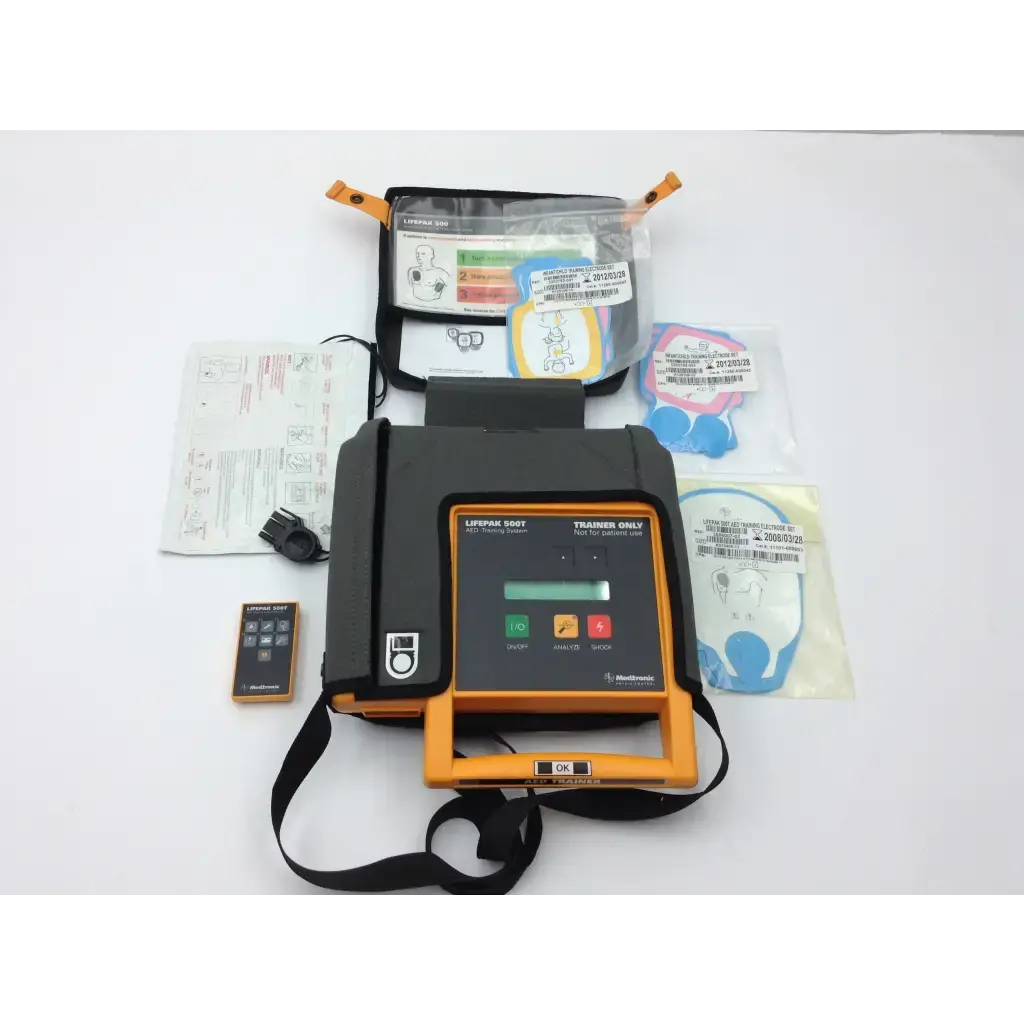

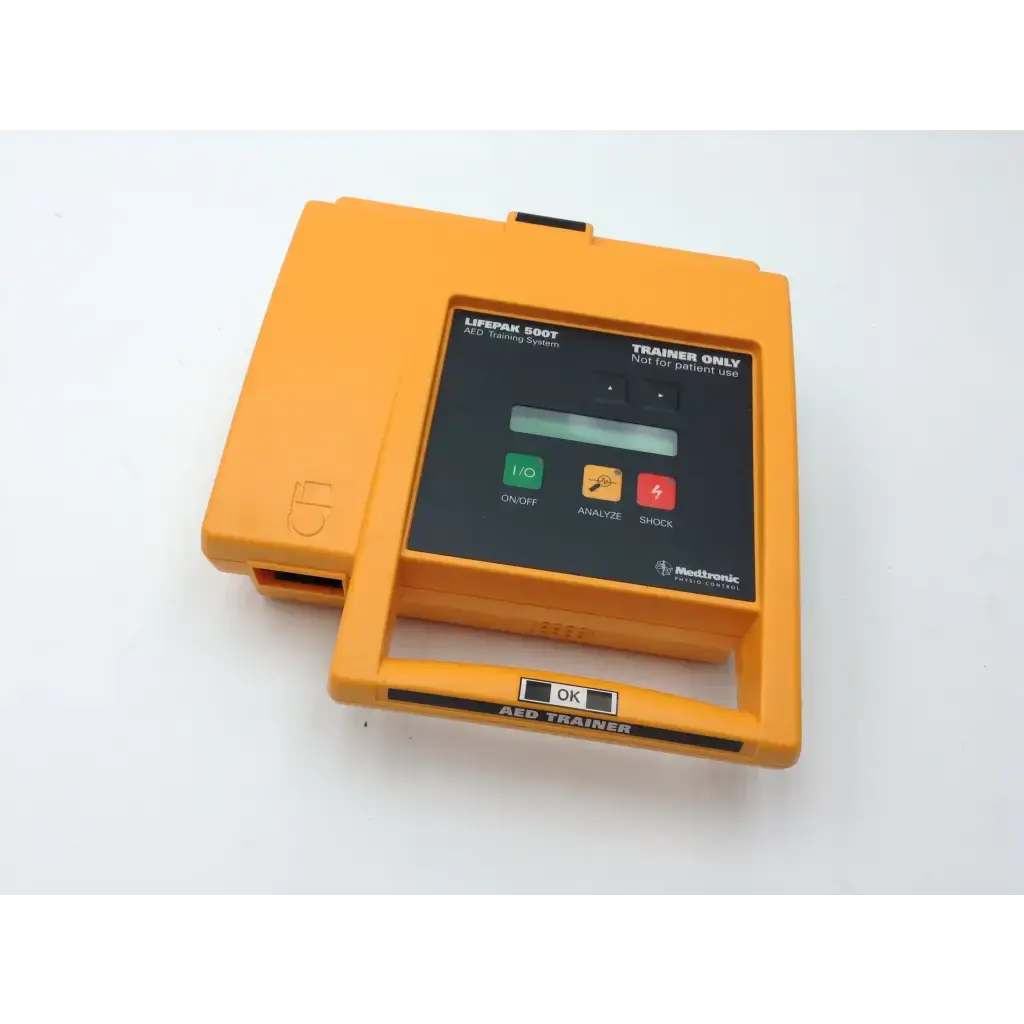

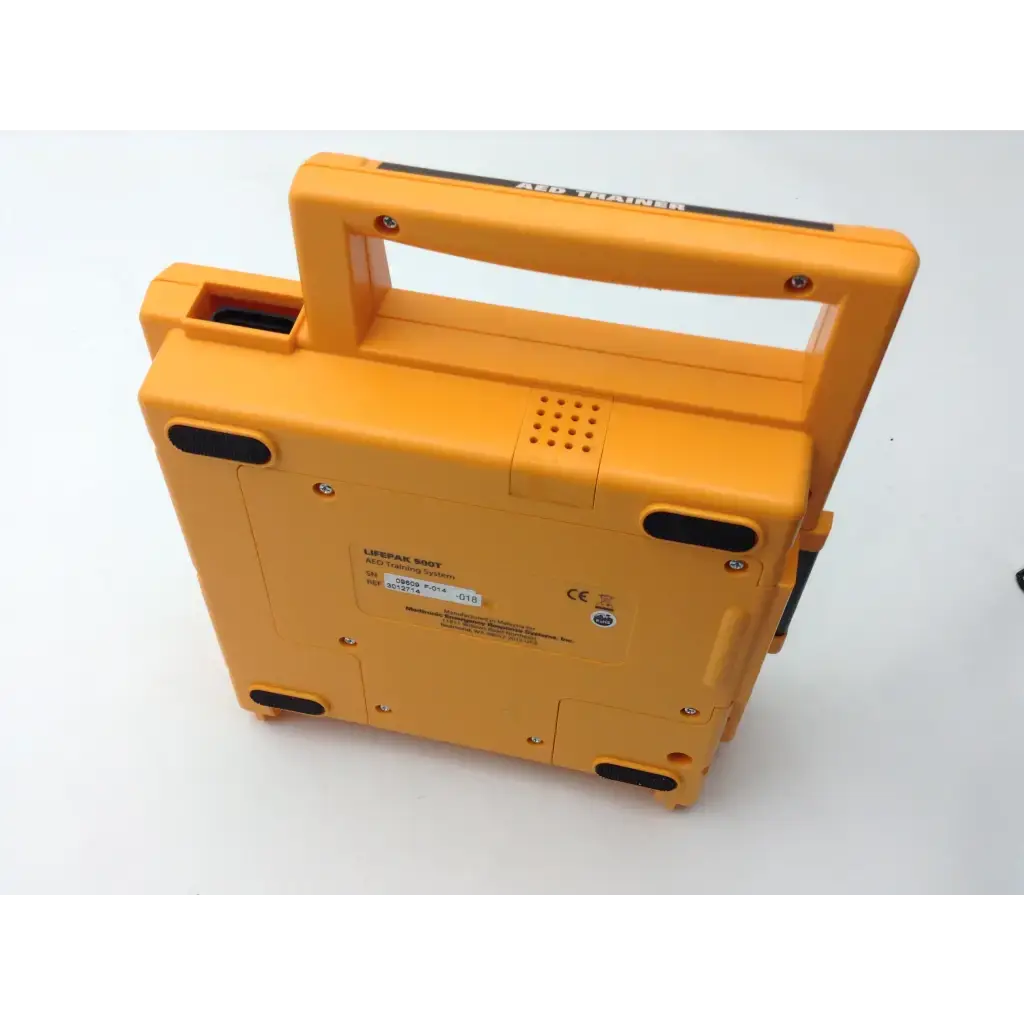

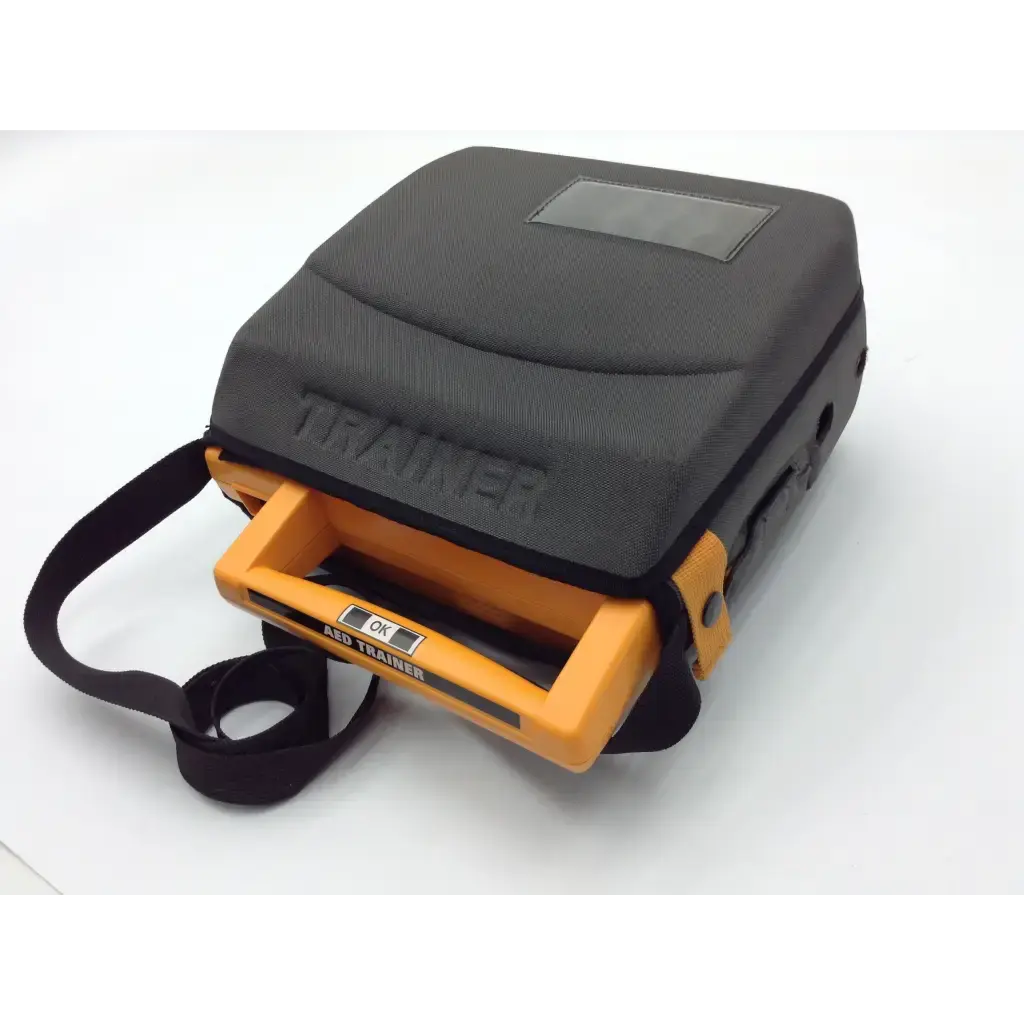

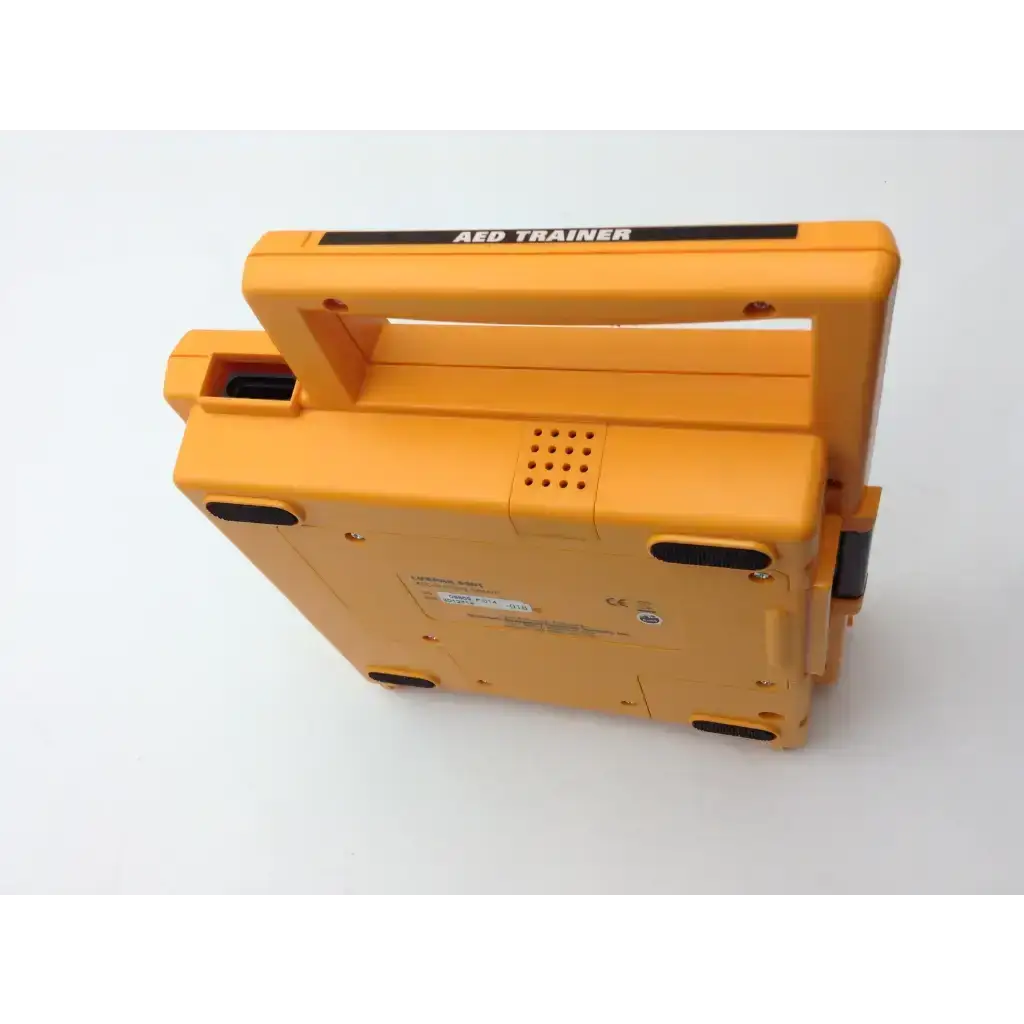

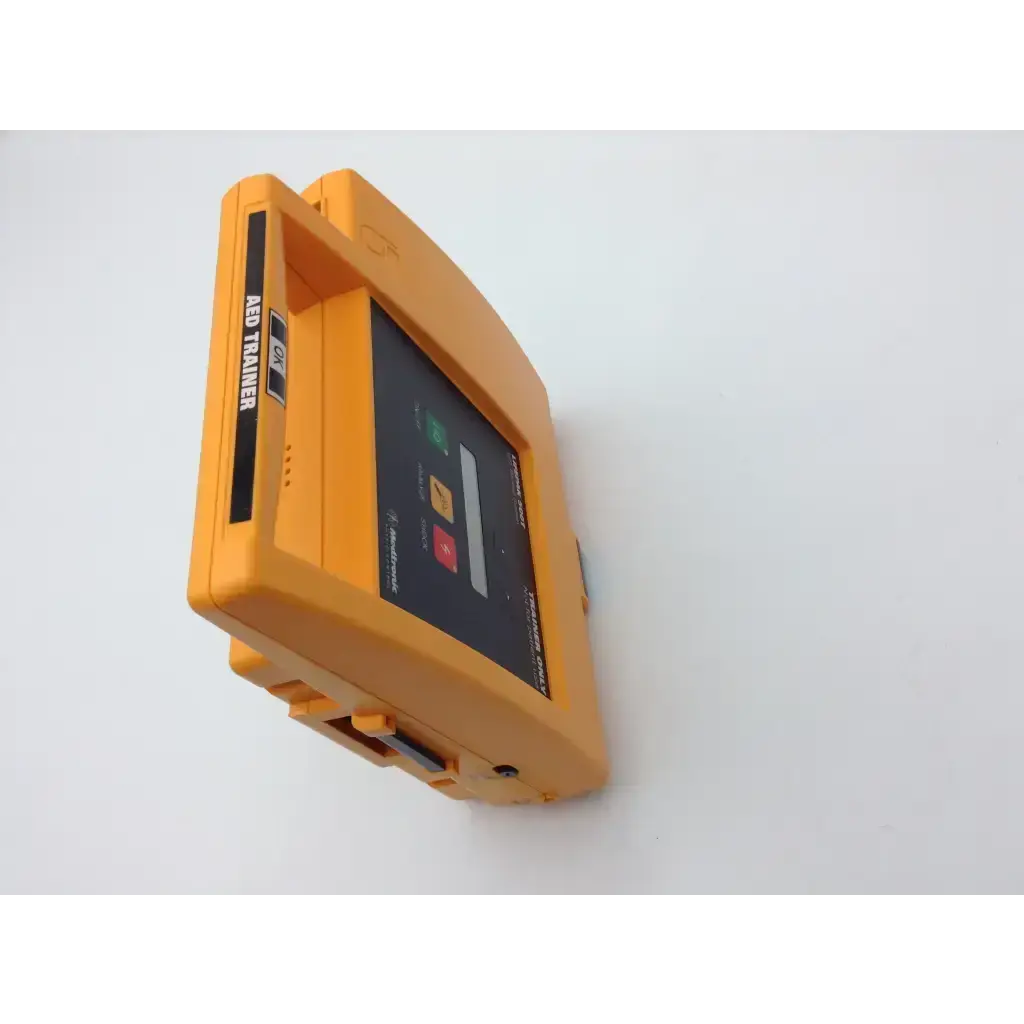

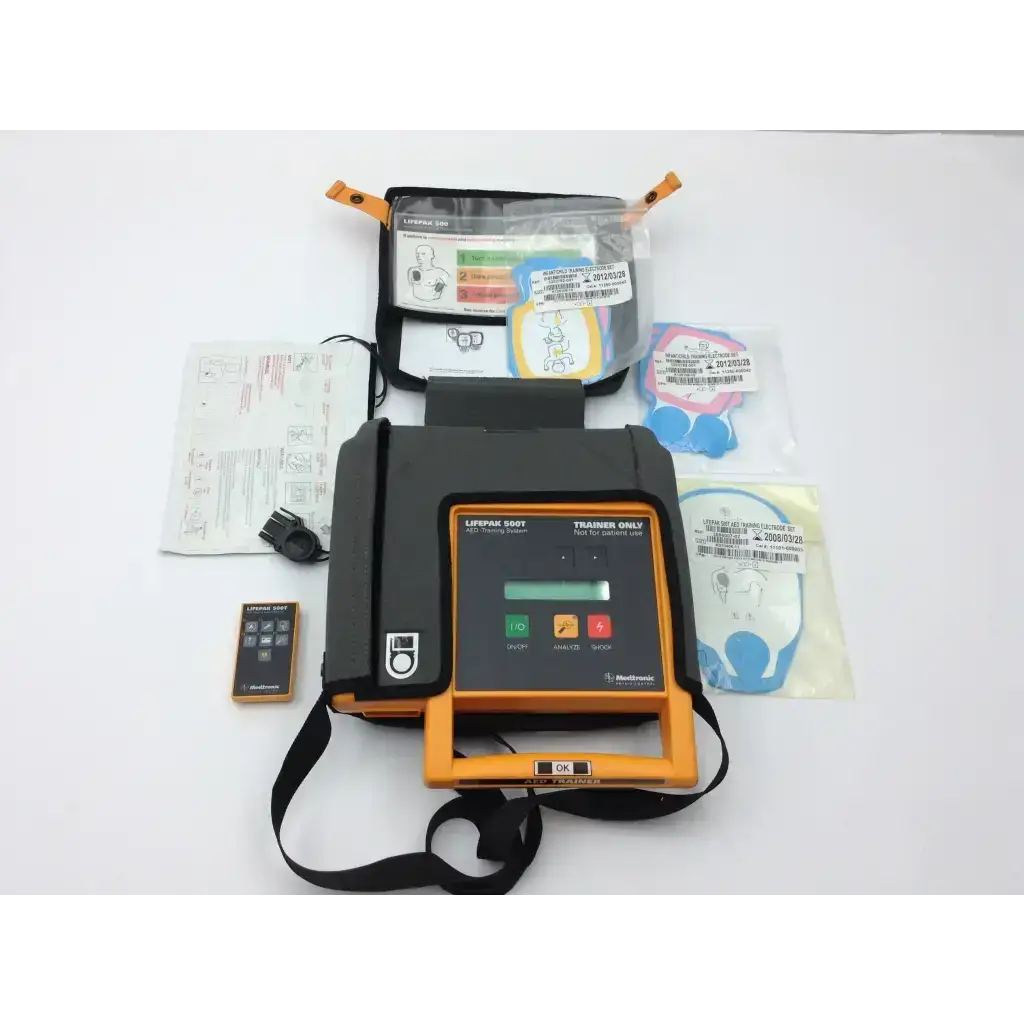

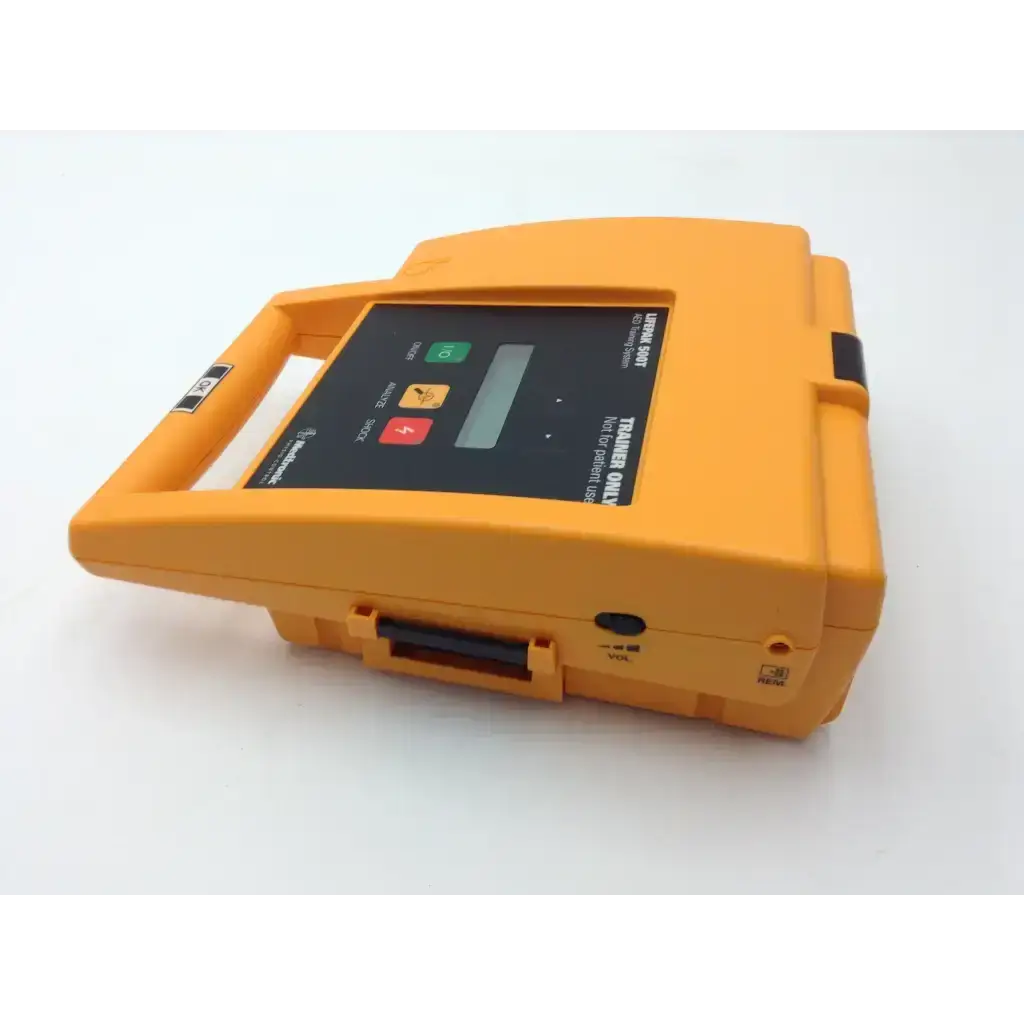

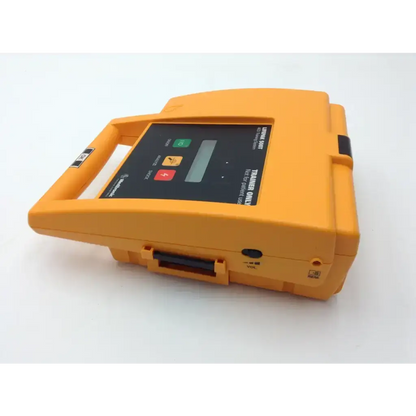

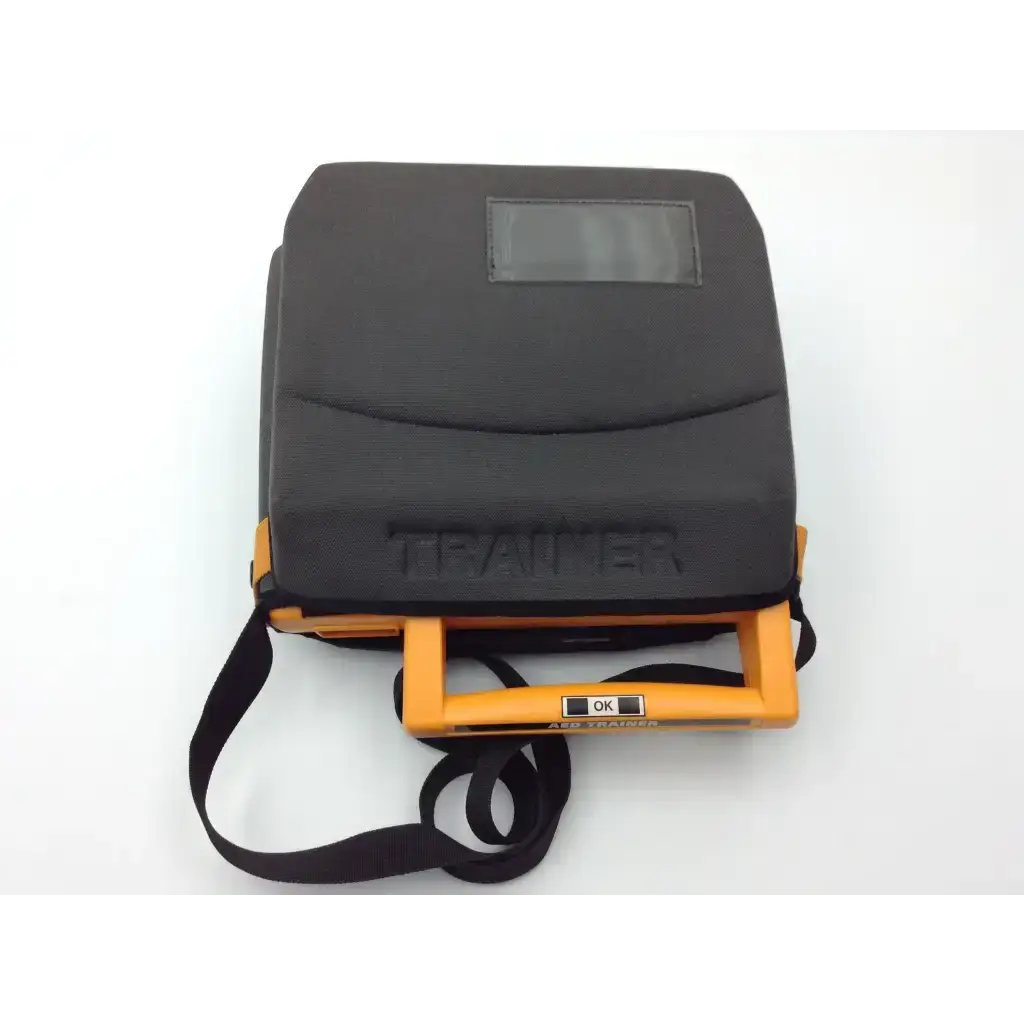

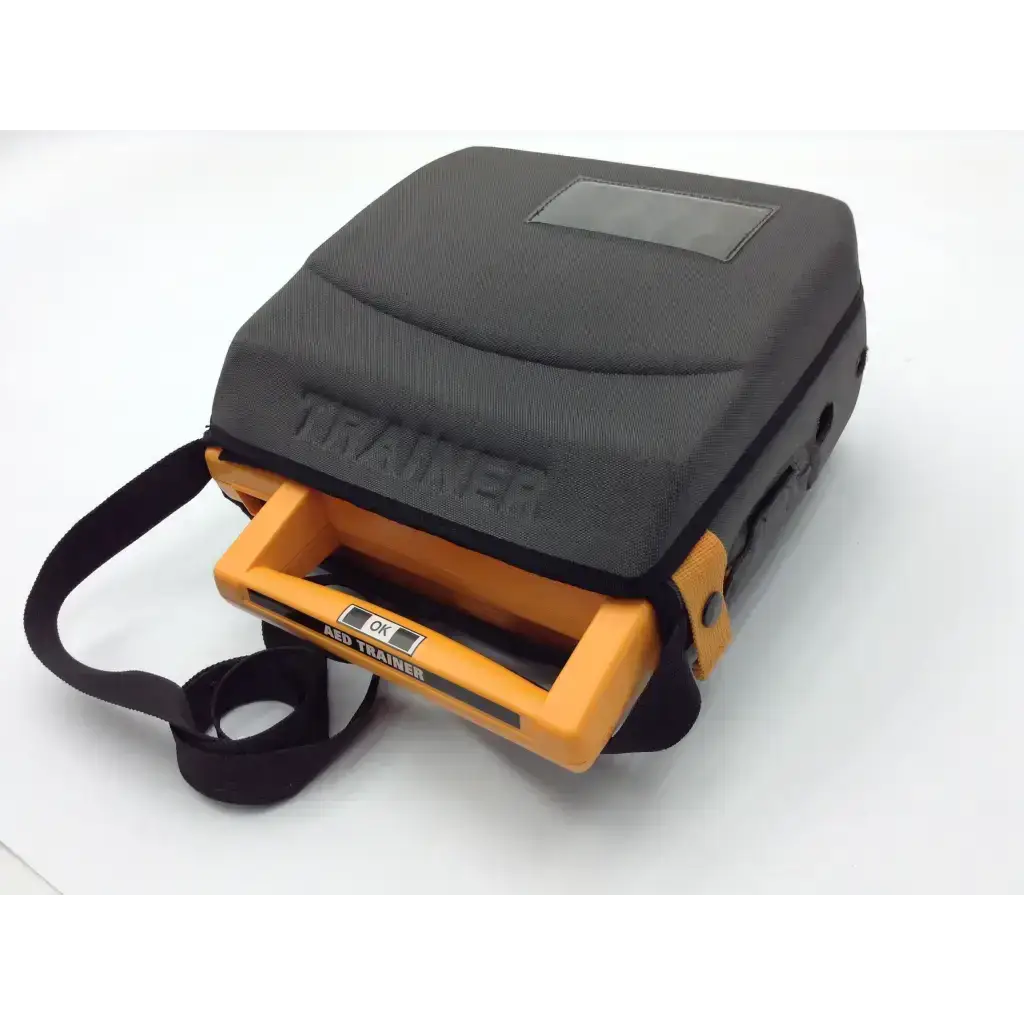

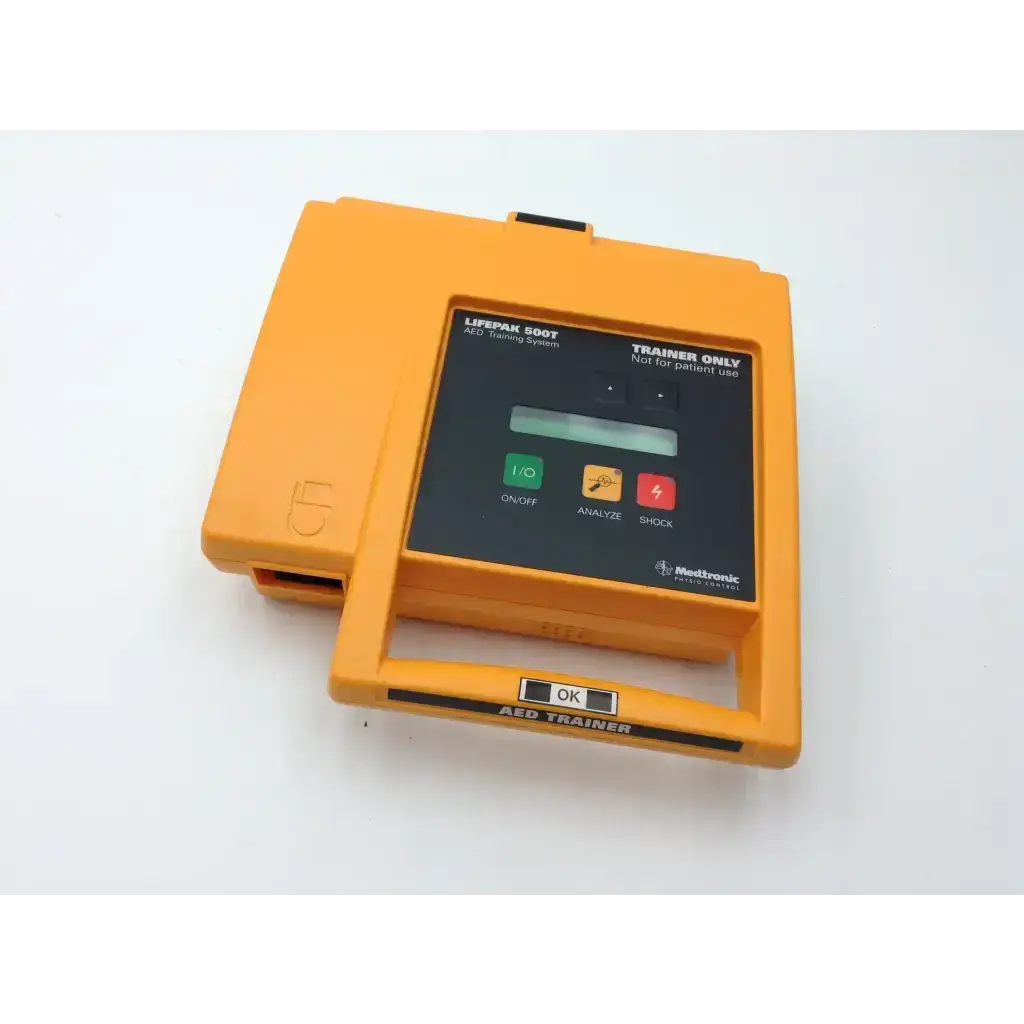

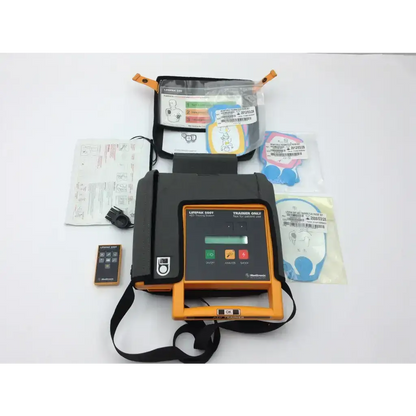

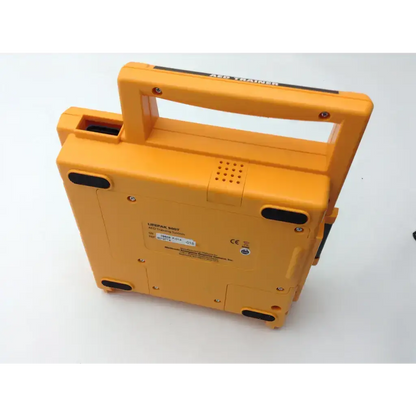

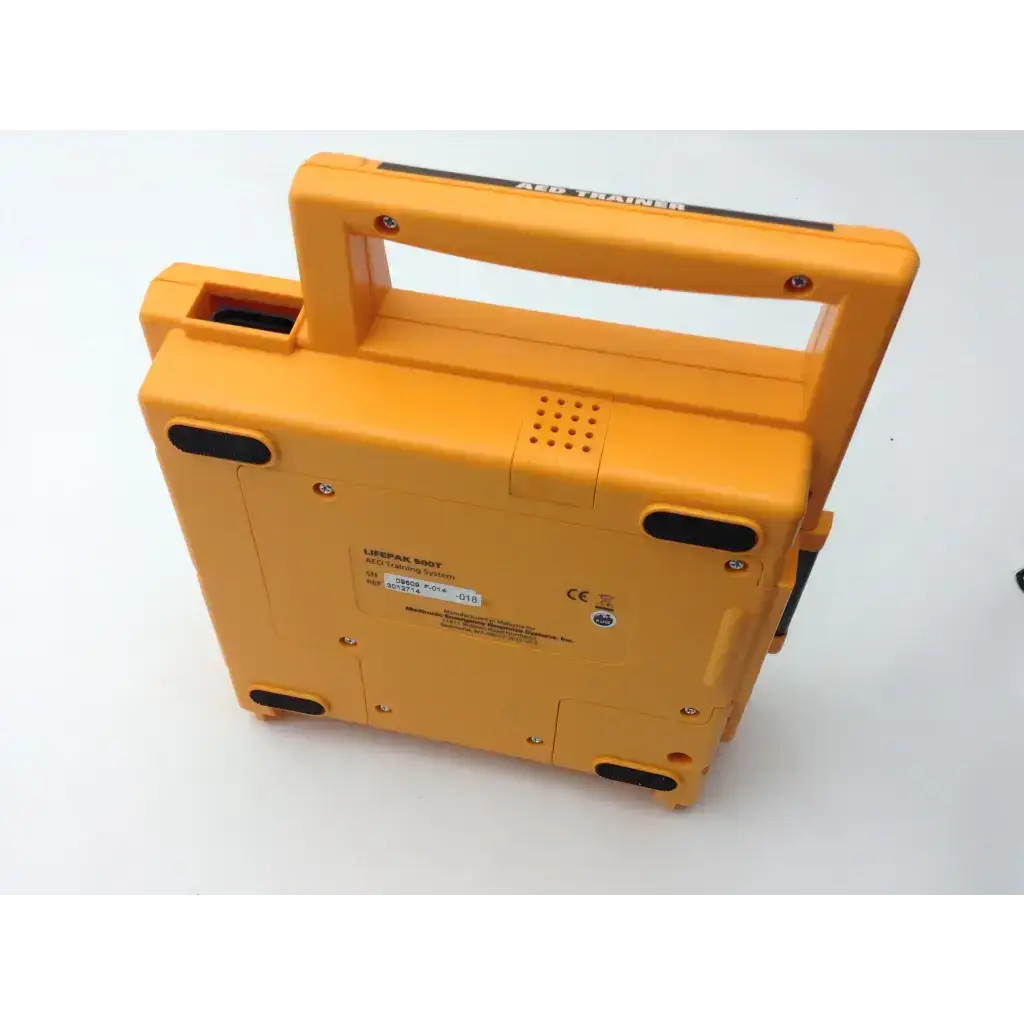

Medtronic Lifepak 500T AED Training System

SKU:
3 Months Limited Warranty
Certified Used
Regular price
Price
$695.99
Unit price
per
iso
Buy It Now

Medtronic Lifepak 500T AED Training System Features:

The LIFEPAK 500T AED Training System provides realistic training in the use of the LIFEPAK 500 automated external defibrillator (AED) without the actual charge and discharge of electrical energy. The AED Trainer accurately represents the appearance of the LIFEPAK 500 AED and realistically simulates actual LIFEPAK 500 AED operations including both two or three-button operations.
The AED Trainer reproduces the LIFEPAK 500 AED's screen messages, audible tones, and voice prompts while guiding users through simulated analysis, energy delivery, and prompted CPR time(when selected). All AED Trainer functions are programmable to simulate the full range of scenarios possible during the actual use of the LIFEPAK 500 AED.
The AED Trainer is powered by four alkaline D-cell batteries. The batteries are housed in a battery pack that simulates the size, shape, and installation technique of the LIFEPAK 500 AED battery.

BBEE1

Specifications

General :

The device is designed for low-impact, low-stress environments. For use in temperature-controlled areas protected from precipitation.

Capable of withstanding heavy usage and prolonged periods of operation.

Size :

10.2 cm x 26.5 cm x 29.5 cm (4 in. x 10.4 in. x 11.6 in.) approximate

Weight: 2.1 kg (4.6 lb)

Batteries :

6 volts/4 cells, range 3.2 Vdc ~ 6.5 Vdc.

Four non-rechargeable D-cell alkaline batteries. New batteries will

provide not less than 100 hours of continuous operation under

normal indoor-environment conditions.

Buttons

ON/OFF, ANALYZE, SHOCK, UP ARROW, RIGHT ARROW

Screen Display

5 x 7 dot matrix liquid crystal display with two lines of 20

characters per line for text messages.



Speaker



Volume output: (average / maximum)

• Hi: 100dB / 108dB

• Med: 95dB / 105dB

• Low: 90dB / 101dB

Operating Temperature

3° to 38°C (37.4° to 100.4°F)

Storage Temperature

-10° to 60°C (14° to 140°F) (remove batteries for storage)

Water Resistance

Spillage resistance per IEC 601-1, part 44.3

Transmission

Wireless infrared signal. Range, 3 meters max. 82-inch optional cable attachment.

Size

4.57 cm x 3.38 cm x 1.65 cm (1.8 in. x 1.3 in. x .6 in.

Weight (without batteries)

32 grams (1.1 ounces)

Batteries

3 volts supplied from two AAA alkaline batteries.

Buttons

7-key membrane switch pad. Icon-labeled for the following functions: NO SHOCK, SERVICE WARNING / REQUIRED, ELECTRODE PAD CONTACT, MOTION, LOW / REPLACE BATTERY, CPSS, PAUSE

Operating Temperature

3° to 38°C (37.4° to 100.4°F)

Storage Temperature

-10° to 60°C (14° to 140°F) (remove batteries for storage)

Water Resistance

Spillage resistance per IEC 601-1, part 44.3
