Description:

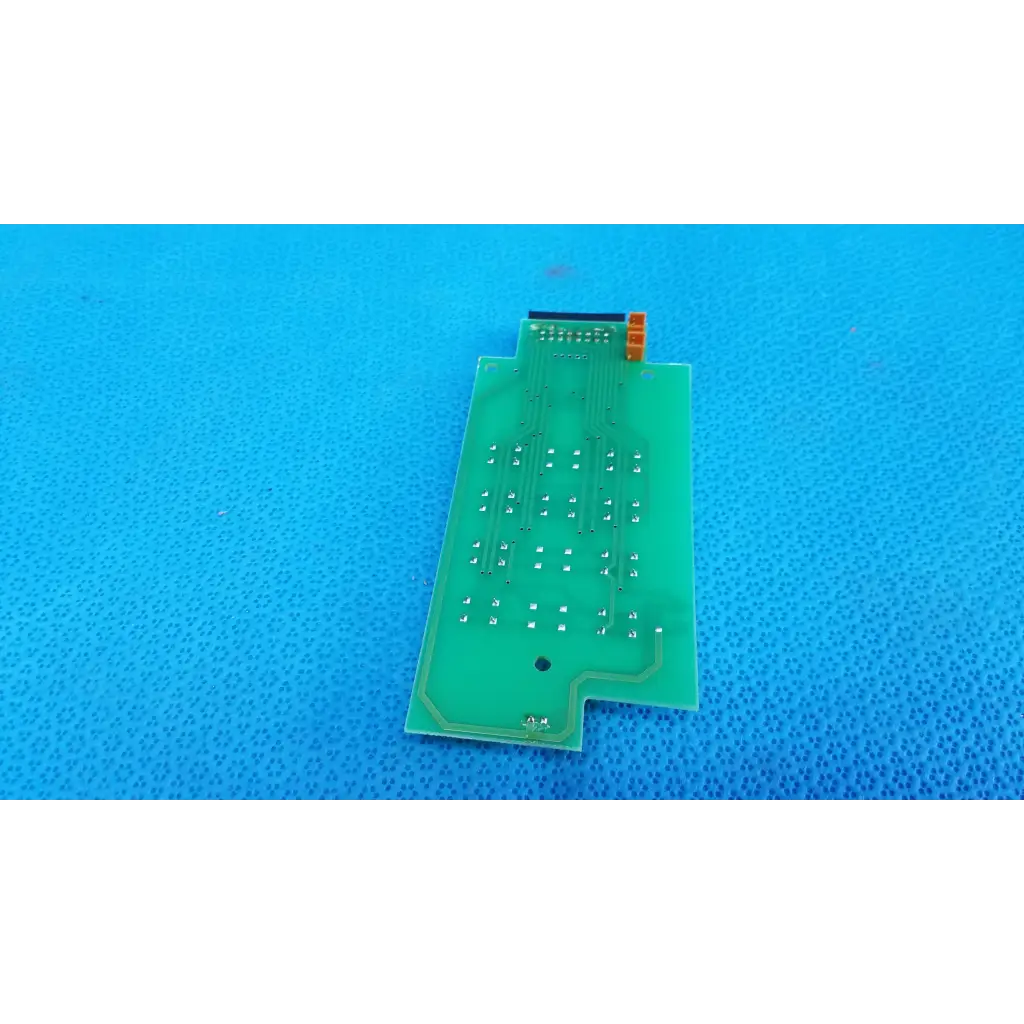

This Joystick Base Control Button Matrix PCB is designed for use in compatible Topcon TRC-NW6SF retinal camera systems. It processes input signals from the joystick base control buttons, supporting responsive operation and communication between the user interface and the system's electronic control circuitry. The board is intended for integration into the device's internal control assembly.
Specifications:
-
Brand: Topcon
-
Model Compatibility: TRC-NW6SF
-
Part Number: 4182074011
-
Product Type: Joystick Base Control Button Matrix PCB
-
Function: Button Matrix Signal Processing and Control
-
Application: Retinal Camera Electronics
-
Installation Type: Internal Equipment Mount
Features:
-
Designed for TRC-NW6SF retinal camera systems
-
Supports joystick base control button functions
-
Provides reliable signal processing and communication
-
Compact PCB design for internal integration
-
OEM electronic component for compatible imaging systems
