A Biomedical Service Conmed Sabre 180 1200.00

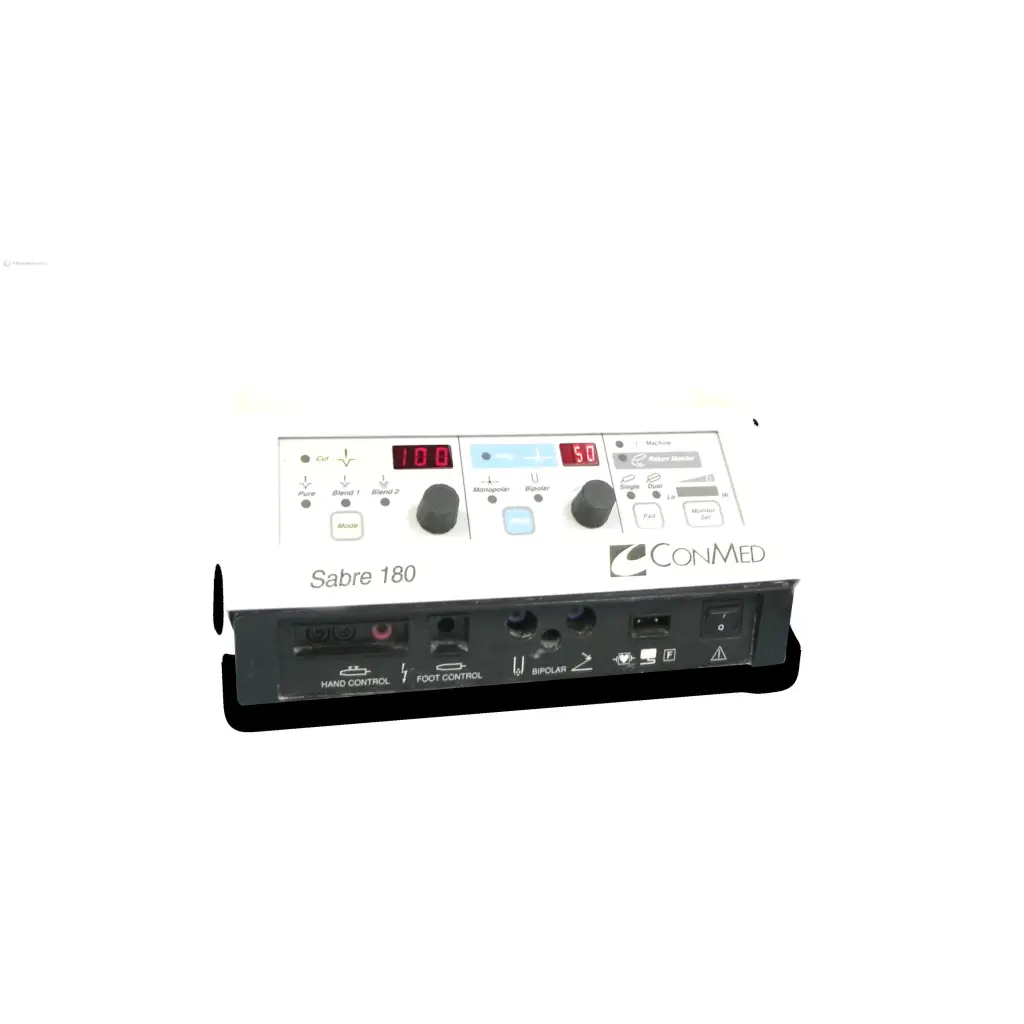

Conmed Sabre 180

SKU: P/0320/C/0240/S
Certified Used
3 Months Limited Warranty
Regular price
Price
$1,200.00
Unit price
per
iso
Buy It Now

Conmed Sabre 180 Features

This medium-powered generator delivers impressive electrosurgical performance in all modes including monopolar cut and coag and bipolar coag. Additionally, the Sabre 180 is equipped with ARM Contact Quality, the most sensitive pad monitoring system available. The Sabre 180 is ideal for use in surgery centers and office clinics during minor, general, and laparoscopic procedures.

  • Digital Knob Power Controls
  • Last Used settings on Power Up
  • Aspen Return Monitor provides an extra margin of safety against possible patient burns at the return site
  • The Resistance Indicator displays the resistance of the patient measured between the conductive contacts of the return electrode
  • Isolated Output Circuitry minimizes the probability of alternate ground site burns
  • Only one output is active at a time for t
  • The maximum patient and operator safety
  • Power Adjustable While Activated
  • Versatile, Effective Monopolar Cutting
  • Circuit Redundancy
  • Microprocessor Control
  • Fulguration/Coagulation
  • Improved Bipolar
  • Simplified Controls
  • Rugged, high-efficiency circuitry
  • Circuit Protection
  • Mounting Flexibility

Conmed Sabre 180 ESU Applications

  • Head and Neck Surgery
  • Cardiac Cath Labs
  • Laparoscopy Carts
  • Minor Surgery Centers
  • Endoscopy
  • Interventional Radiology
  • Physician Offices

    Specifications

    Conmed Sabre 180 Specifications

    Dimensions

    • Height: 6in (153mm)
    • Width: 12 in (305 mm)
    • Depth: 16 in ( 407mm)
    • Weight: 20 lbs. (9.1 kg)

    Alarms

    • Return Electrode: 1000 Hz, > 65 dbA
    • Single Foil acceptance: 0-10 ohms nominal
    • Dual Foil acceptance: 10-150 ohms nominal
    • Dual Foil alarm threshold: monitor set resistance +20% nominal
    • Control error: 1710 Hz pulsating, 40-65 dbA
    • Machine fault: 1000 Hz, 65 dbA continuous

    Output Accuracy

    • Setting: +/- 10%, +/- 5W to rated load @ rated mains.
    • Mains: < 5% over mains voltage range.
    • Power Decrease: < 5%, 50W output, 20 sec

    Output Adjustment

    • Settings: by digital knob from 0 to maximum in 1 watt steps.
    • Display: seven segment digital display of watts to rated load resolved to 1 watt.

    General

    • 100 Watt Power Digital ESU w/Footswitch
    • A.R.M. (Aspen Return Monitor)
    • Monopolar Pure Cut: 100 Watts
    • Cut Blend 1: 65 Watts
    • Cut Blend 2: 50 Watts
    • Coag: 80 Watts
    • Bipolar Coag: 50 Watts
    • Input volts: 110
